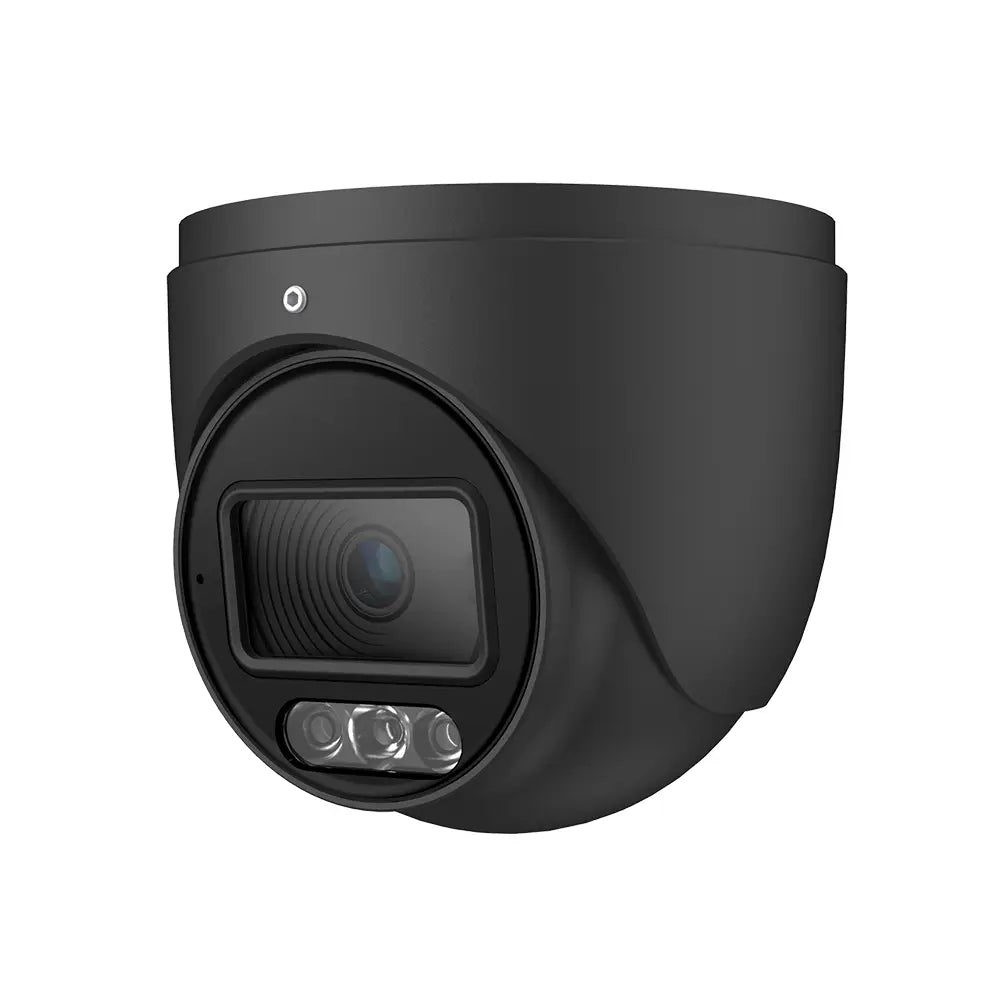

4MP AI Full-Color Turret Camera (Grey)

Network Camera. Titanium IP camera. Power is PoE or 12V DC as listed in the spec sheet.

At a Glance

• 4MP
• Max. resolution: 2688 x 1520
• 20~ 30m white light view distance
• 24/7 full color imaging
• 3D DNR,
• Support electronic image stabilization
• Support image distortion correction
• Support 1CH audio input; 1 CH built-in MIC
• Built-in micro SD card slot; up to 512GB
• DC12V/PoE power supply
• IP 67 ingress protection
• Support three streams
• Support remote monitoring by smart phones & tablet PCs with iOS and Android OS
• Multiple smart events can be enabled at the same time
• Support P2P function
• Support dual-system backup
• TVT DIGITAL TECHNOLOGY CO., LTD.
• Address: 23 r d Floor, Block B4, Building NO.9, Shenzhen Bay

Camera Specs

• Image Sensor: 1 / 1.79 "CMOS
• Image Size: 2688 x 1520
• Resolution: 4MP (2688 x 1520),2K (2560 x 1440), 1080P (1920 x 1080), 720P (1280 x 720 ), D1
• Electronic Shutter: Auto or manual mode; manual mode: 1 / 3s ~ 1 / 100000 s
• Min. Illumination: 0.0001 lux @F1.0, AGC ON; 0 lux with illumination on
• Lens: 3.6 mm@F1.0, H.FoV: 96°; V.FoV: 51°; D.FoV:112°
• Focus: Fixed Power Consumption < 6.5W
• Wide Dynamic Range: 120dB (the next version will support)
• BLC:
• HLC: Yes
• Defog: Yes
• Digital NR: 3D DNR
• EIS: Yes
• S/N Ratio: ≥50dB
• Angle Adjustment: Pan: 0°~360°; Tilt:0°~80°; Rotation: 0°~360°
• Video Compression: Main stream: H.265+/ H.265 / H.264+ / H.264
• Main Stream: 4MP/2K/1080P( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) DIMENSIONS
• Sub Stream: 720P/D1/640 x 360/VGA/CIF/480 x 240 ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps )
• Third Stream: 720P/D1/640 x 360/VGA/CIF/480 x 240 ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps )
• Bit Rate: 32 Kbps ~8 Mbps
• Audio Compression: G711A / U
• Video Output: No
• Audio: 1CH audio input; 1CH built-in microphone
• Smart Event: abandoned/ missing object
• Face

Physical & Power

• Network: Camera; remote storage; micro SD card storage; disconnection; RJ 45 (10/100 Base-T)
• Storage: Built-in micro SD card slot; up to 512GB
• Alarm: No
• Reset: Yes
• PoE: 3D DNR,
• Power Supply: DC12V/PoE
• Storage Conditions: - 30 °C ~ 65°C (-22°F~149°F), Humidity: less than 95 % (non-condensing)

Product Features

From the ENS product page for this camera (Titanium Dark X Series).

Key Features | Smart Motion Detection

Smart Motion Detection (SMD) filters motion-detection alarms triggered by unessential targets. It recognizes humans and vehicles, sends alarm notifications, and reduces false alarms.

Key Features | People Counting

People counting tracks moving human targets for accurate statistics and business-intelligence reports.

• High accuracy rate
• Simultaneous
• Storage period of passenger flow data

Key Features | Effective Perimeter Protection

Perimeter Protection recognizes humans and vehicles accurately. In a restricted area, false alarms from line-crossing and intrusion detection are reduced by target type.

Dark X Technology

• Enhanced perimeter protection with vivid
• Vivid color-at-night images for forensic detail
• Advanced protection in low-light or no-light environments

Smart Intrusion Detection

• Home entrance and exit protection
• Asset theft and vandalism prevention
• Clear vivid images and intruder deterrence
• Home or business perimeter protection

Human and Vehicle Detection

• Focus on human and vehicle classification
• Detect loitering and vandalism in real time
• Accurately detect a human or vehicle, reducing false alarms

Built-In Mic

• One-way audio so you can listen in on visitors or intruders
• Capture forensic audio

Face Detection

• High-accuracy face
• Face capture for people and asset protection
• Identify known faces (for example VIP clients)

People Counting Technology

• Staff optimization from foot-traffic data
• Energy efficiency by occupancy
• Occupancy / compliance support

Recommended junction box (hides the wires): B9-G.

Part number: IP-5IRD4C4A5-G28

Downloads

Specification Sheet (PDF)
