6 m Solar Camera Mounting Pole (SGP-POLE6)

20 ft combination monitoring pole

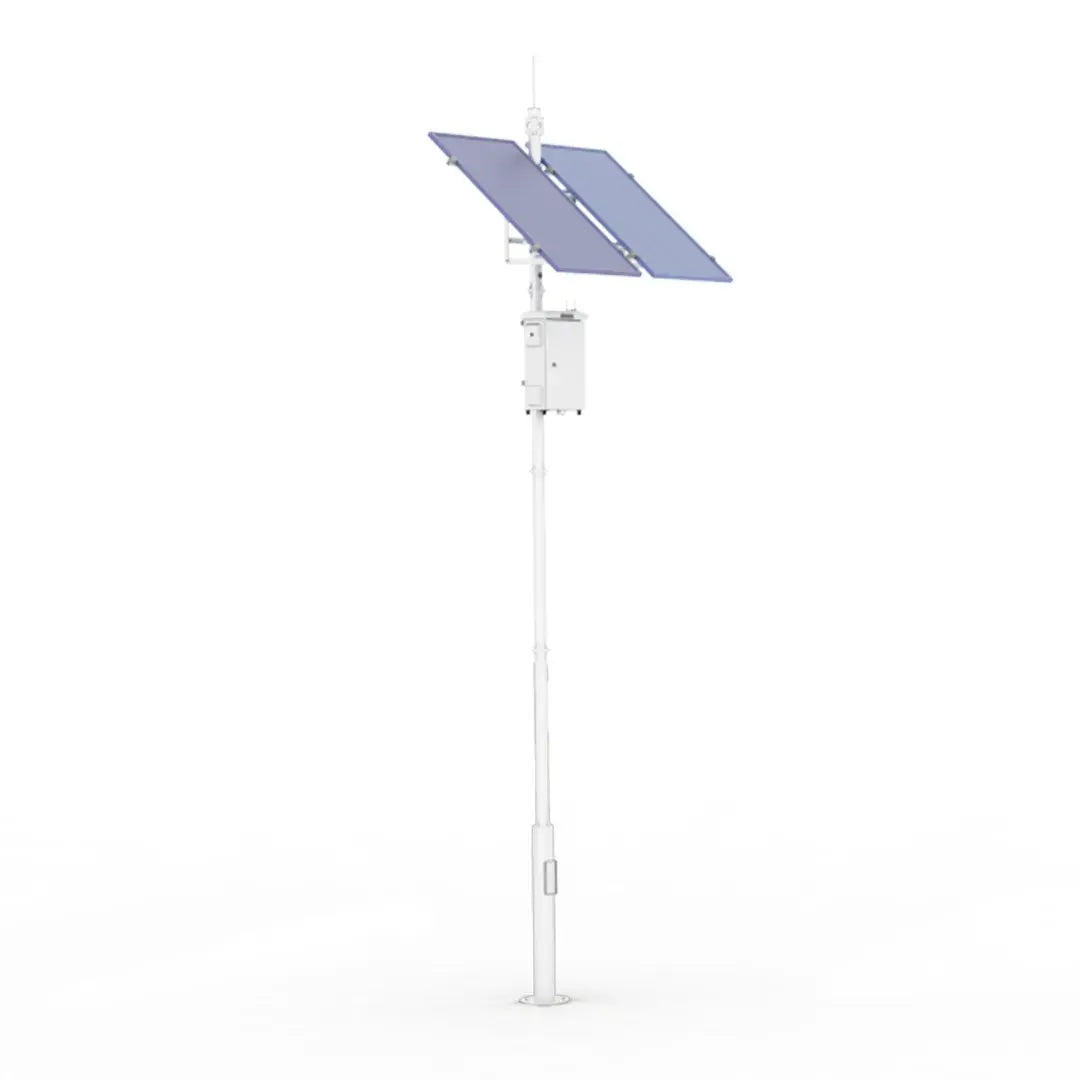

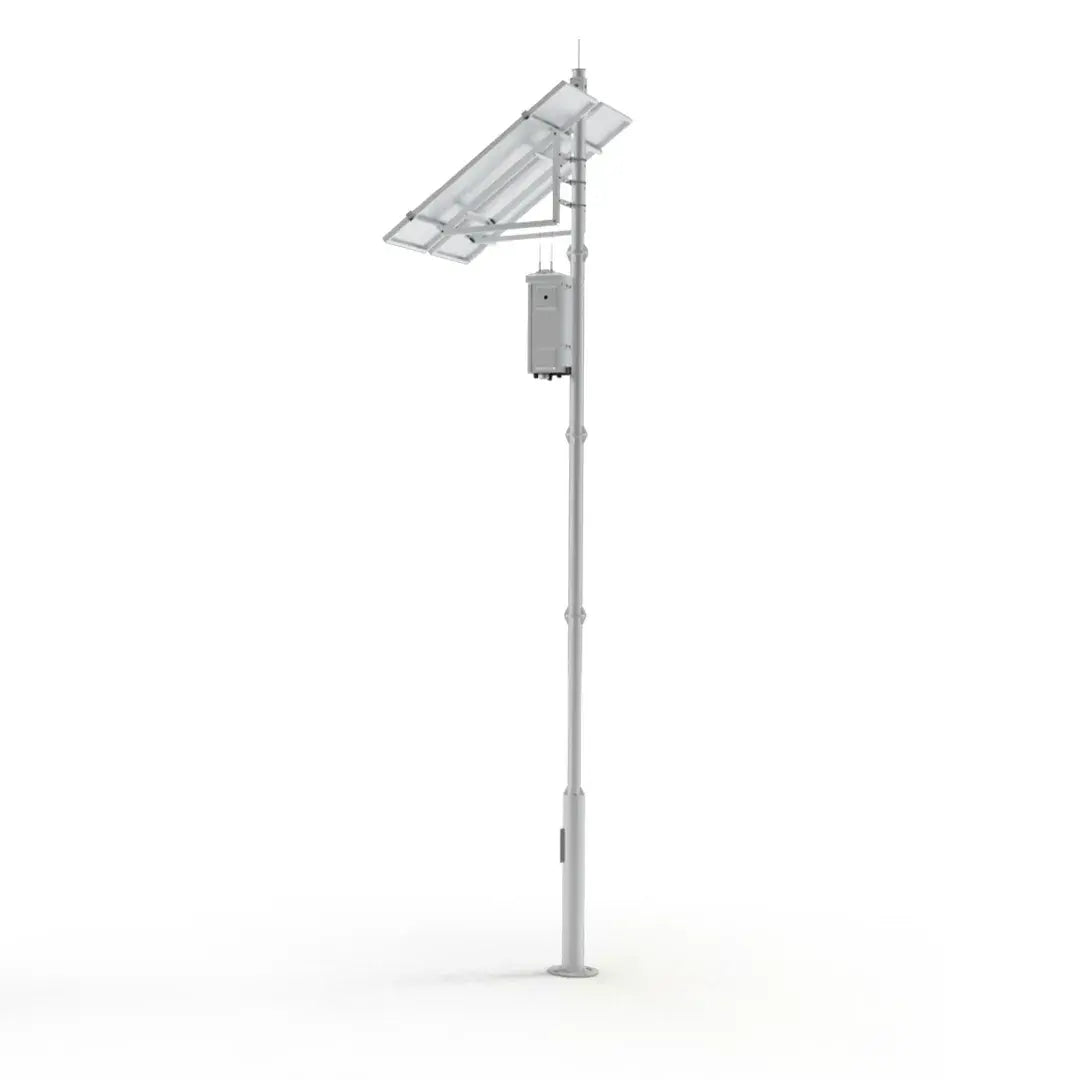

SGP-POLE6 is a 5-section combination monitoring pole. Assembled height 20 ft (5 × 4 ft sections). SGCC round tube, laser-cut and welded, hot-dip galvanized plus spray paint. Cement-pouring steel cage frame included. Cameras, equipment boxes, and solar panels can be mounted on it.

At a Glance

• 20 ft assembled; 5 sections; 4 ft per section
• Top mounting surface diameter 3.42 in
• Base pole 140 mm × 3.0 mm; extension pole 87 mm × 3.0 mm
• Hot-dip galvanized + spray paint; white
• Wind resistance 30 m/s
• Includes waterproof cover, lightning arrester, and 2 camera mounting brackets

Physical

• Material: SGCC
• Dimension: 20 ft assembled, 5 sections, 4 ft/section, pole diameter 3.42 in
• Base pole diameter: 140 mm, thickness 3.0 mm
• Extension pole diameter: 87 mm, thickness 3.0 mm
• Color: white
• Pole surface: hot-dip galvanized + spray paint
• Wind resistance: 30 m/s
• Shape: circle reducing
• Waterproof cover: 1 pcs
• Lightning arrester: 1 pcs
• Camera mounting bracket: 2 pcs
• Weight: 35 kg
• Working temperature: −40° ~ 80°C

Part number: SGP-POLE6
