CCTV Waterproof Equipment Box (SGA-MINI500K)

CCTV waterproof equipment box

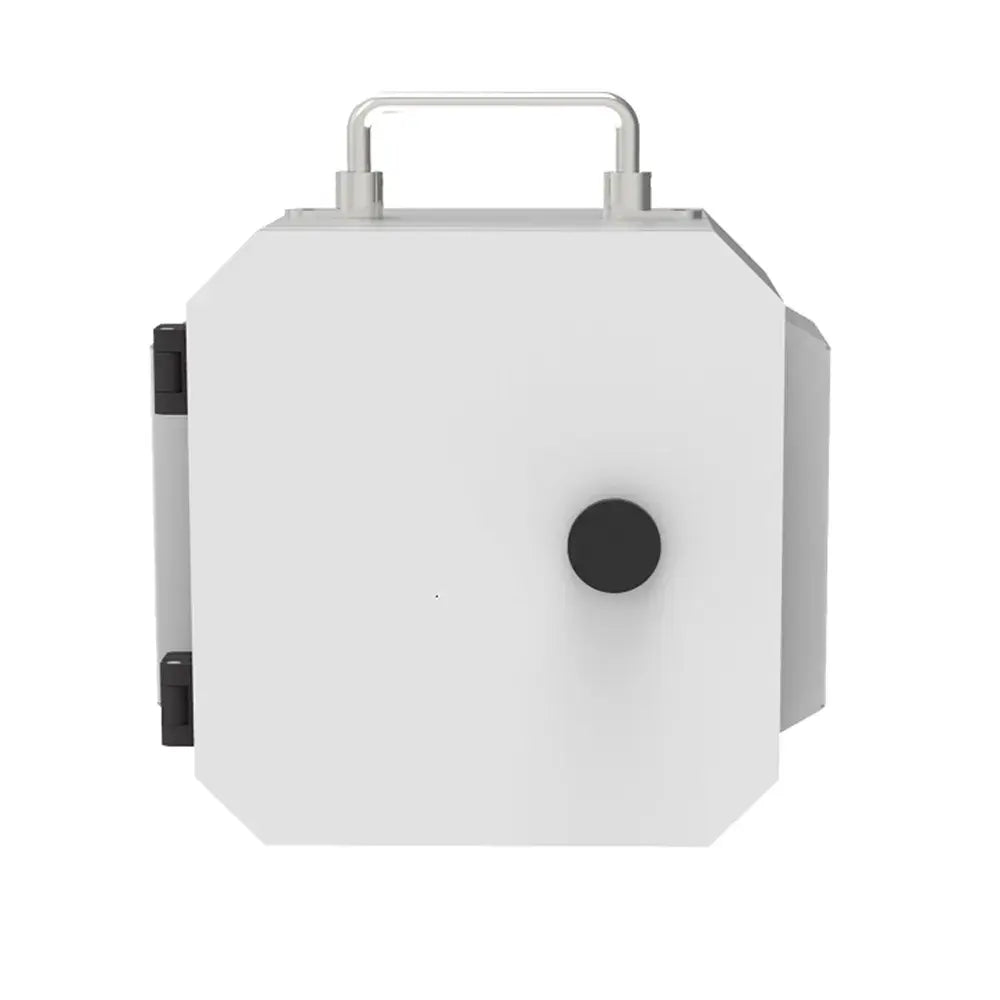

SGA-MINI500K is a Sun Guardian CCTV waterproof equipment box. Cold-rolled steel enclosure (NEMA 3R) with a built-in 90 W PoE splitter (1 PoE in, 4 PoE out). Mount on a wall or a pole. Exterior can take a dome or bullet IPC. Built-in DIN rail and hanger.

This listing is the equipment box from the spec sheet — not a 500 Wh battery kit. The sheet also pictures companion poles SGP-POLE6 (20 ft) and SGP-POLE36 (12 ft); those are sold separately.

At a Glance

• Exterior: dome IPC or bullet IPC
• Built-in 90 W PoE splitter: 1 port PoE in, 4 ports PoE out

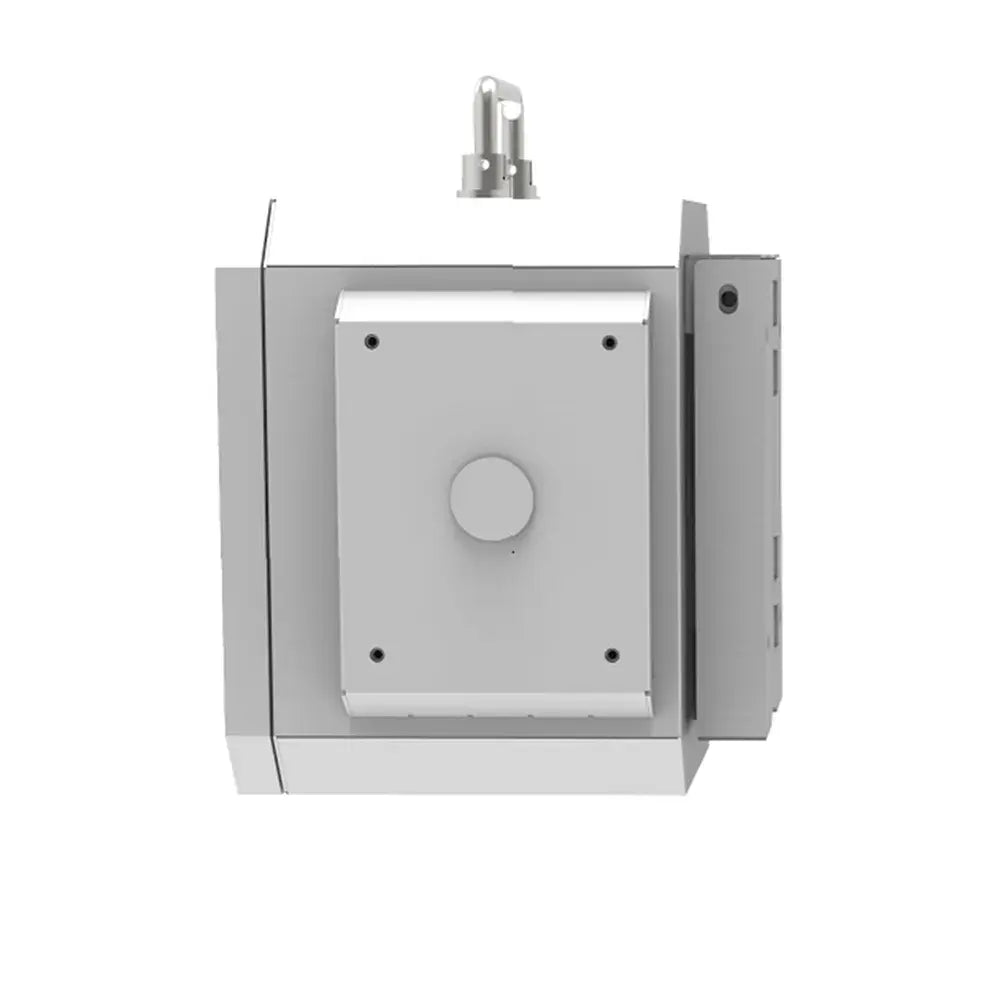

• Wall or pole mount
• Built-in DIN rail

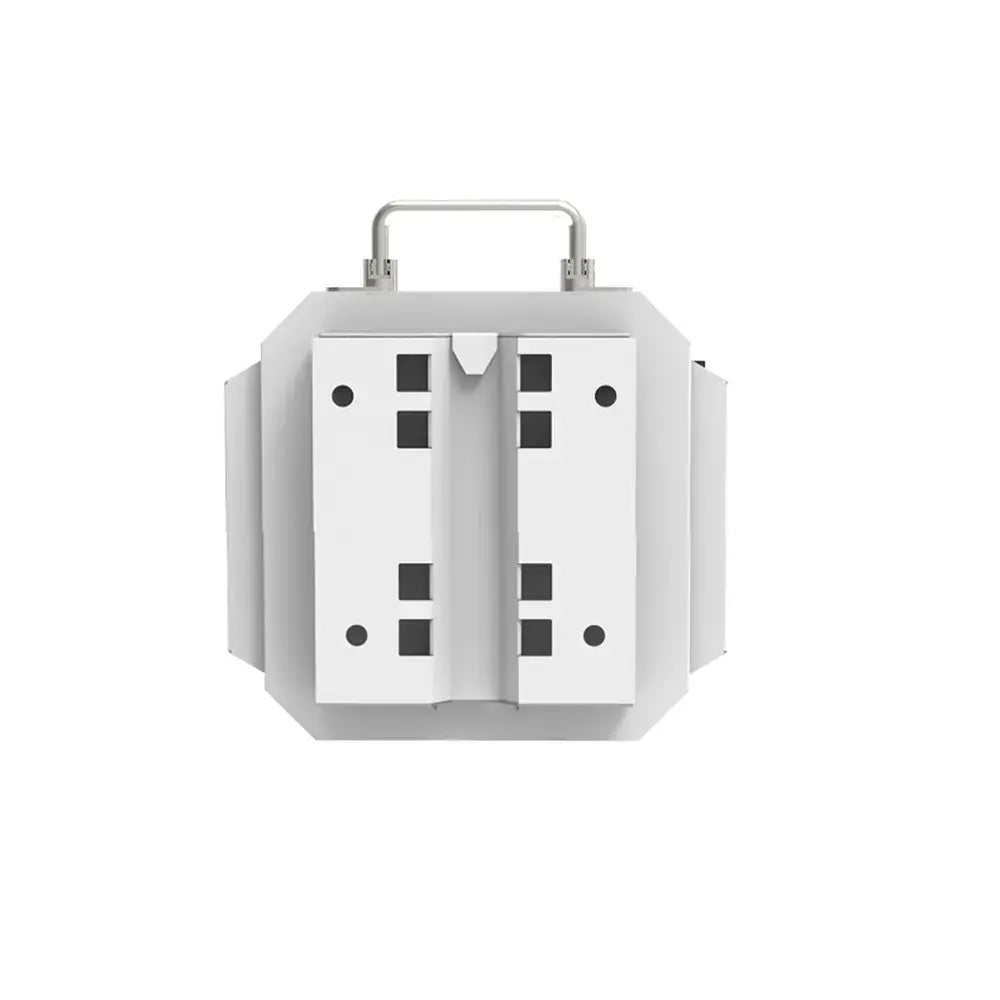

• Easy-install hanger

Physical & Power

• Material: cold-rolled steel sheet
• Protection: NEMA 3R
• Surface: powder spraying
• Weight: 4 kg
• Dimension: H 9.5 × W 9.9 × D 8 in
• PoE splitter: 90 W; 1 in / 4 out

Part number: SGA-MINI500K

Downloads

Specification Sheet (PDF)
