Industrial 8-Port Managed PoE Switch

8-Port Industrial Layer 2 Managed PoE Switch with 2× SFP Ports

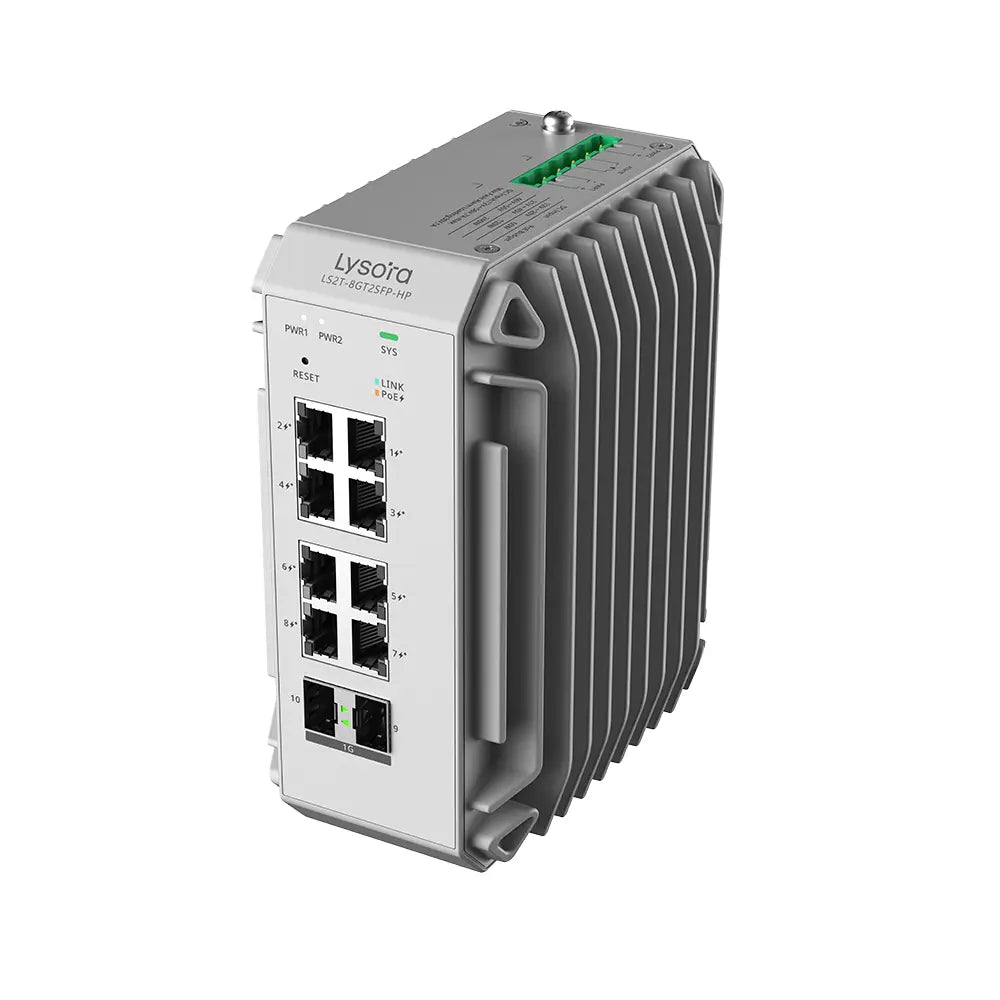

Lysora LS2T-8GT2SFP-HP is an 8-port industrial Layer 2 managed PoE switch with 2× 1GE SFP, 240 W PoE budget, DIN-rail or wall, fanless, DC powered.

At a Glance

• 8× PoE/PoE+ out, 240 W budget

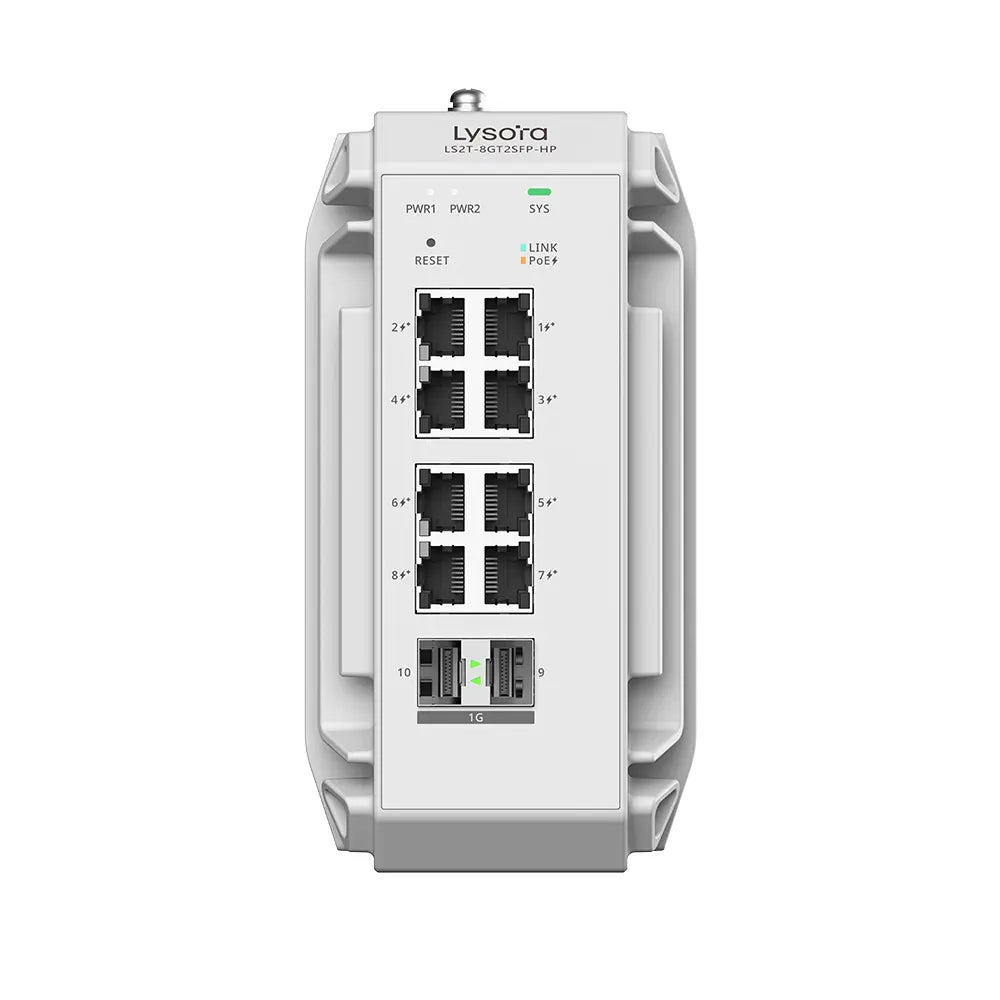

• 8× gigabit RJ45 + 2× 1GE SFP
• Switching capacity 20 Gbps; forwarding 14.88 Mpps
• DIN rail/wall; fanless; 12–56 V DC

Ports

• Total RJ45 ports: 8
• Optical ports: 2
• 1GE SFP ports: 2
• 10/100/1000BASE-T ports: 8

PoE

• PoE/PoE+ out ports: 8
• PoE budget: 240 W
• PoE power pins: 1–2 (+), 3–6 (−)

Hardware

• Switching capacity: 20 Gbps
• Forwarding rate: 14.88 Mpps
• Buffer: 4.1 Mbit
• Fanless; natural cooling

Physical & Power

• Dimensions: 85 × 132 × 165 mm
• Weight: 1.42 kg (without packaging)
• Mounting: DIN rail / wall
• Enclosure: metal

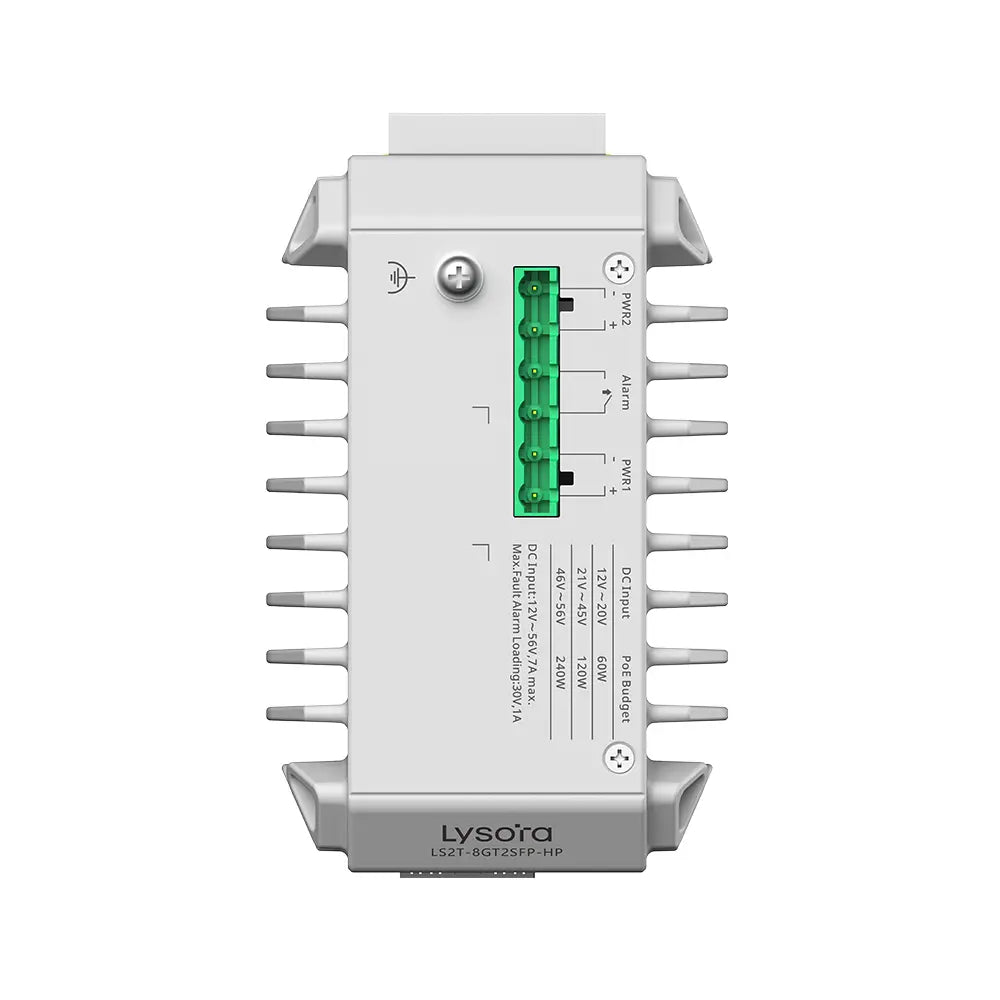

• Power: 12 V DC to 56 V DC; maximum input current 7 A
• Max. power consumption: 20 W (no PoE load); 80 W (full-load power listed on sheet)
• Operating temperature: −40°C to +65°C (installed in a sealed enclosure per sheet)
• Warranty: 3 years

Software

• Layer 2 managed switching (per datasheet title)
• Web / cloud / app management as listed on the Lysora sheet
• PoE watchdog and camera-oriented features where the family sheet lists them
• NDAA compliant (PDF: NDAA Complain)

Part number: LS2T-8GT2SFP-HP

Downloads

Specification Sheet (PDF)
