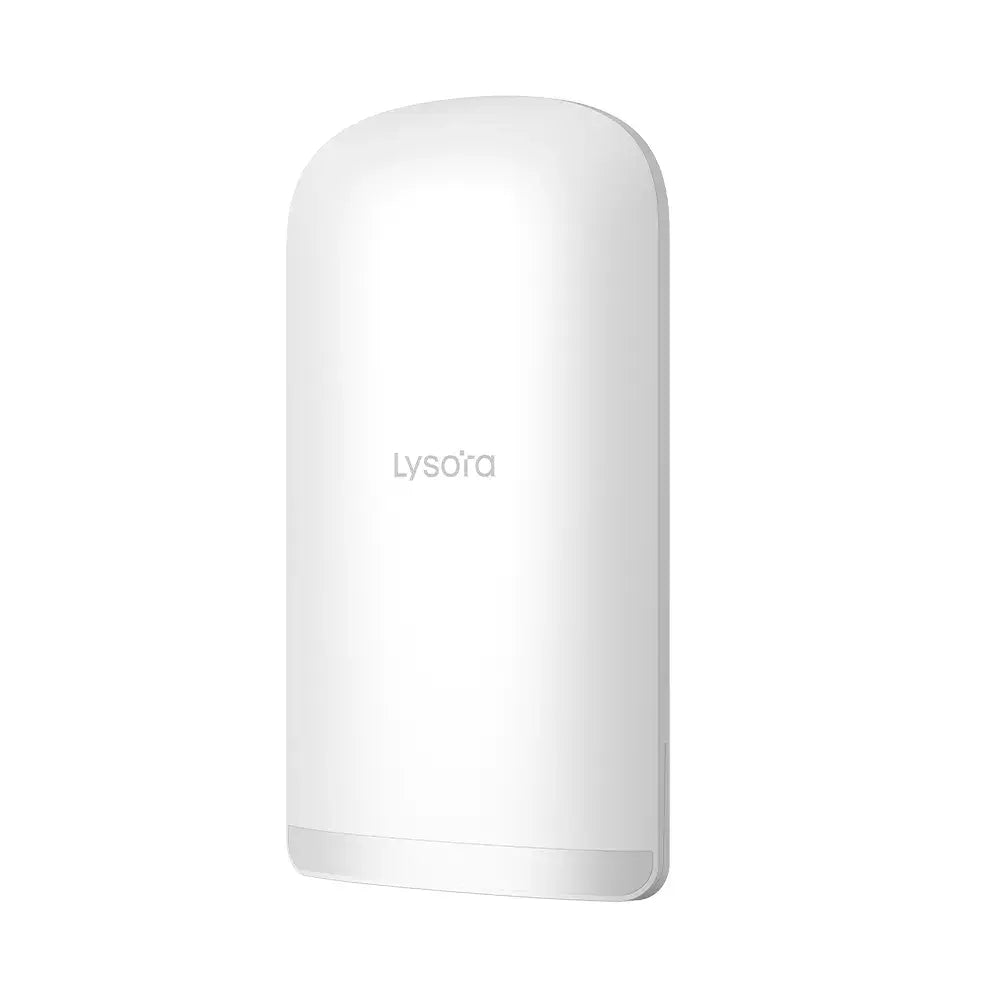

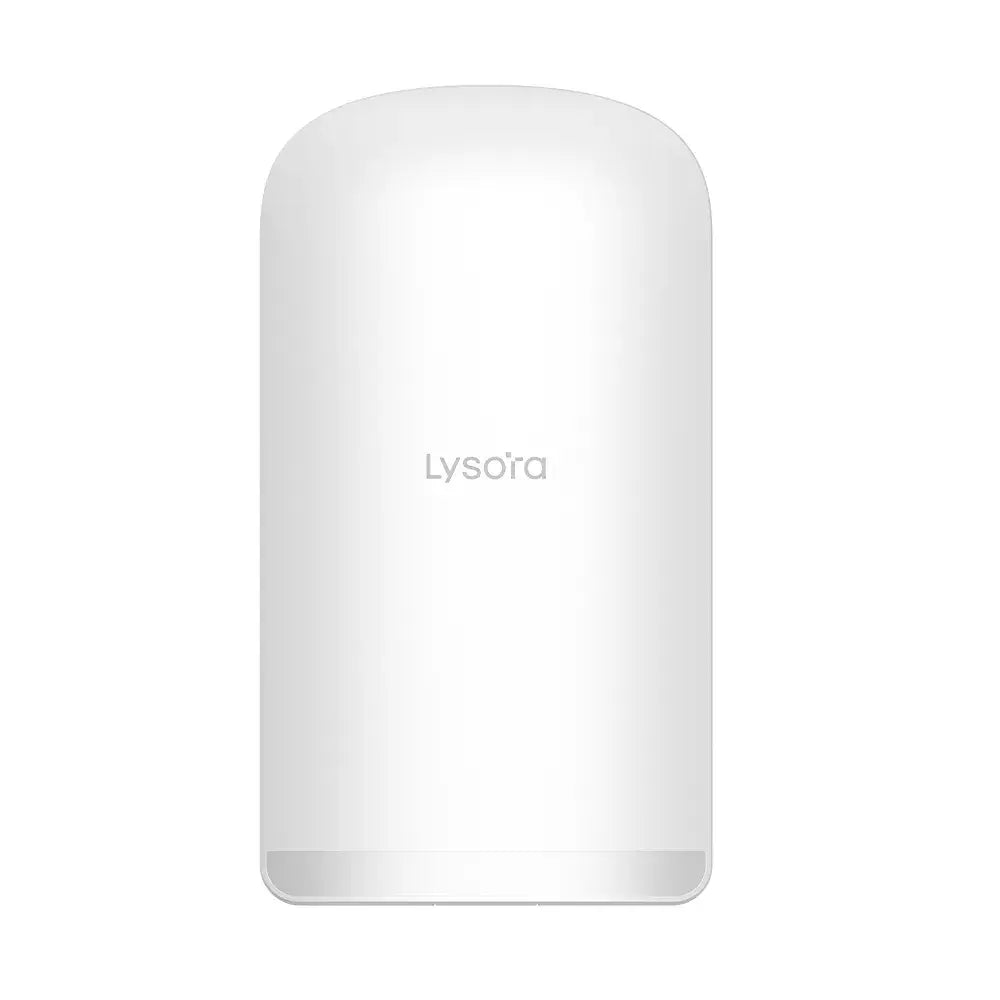

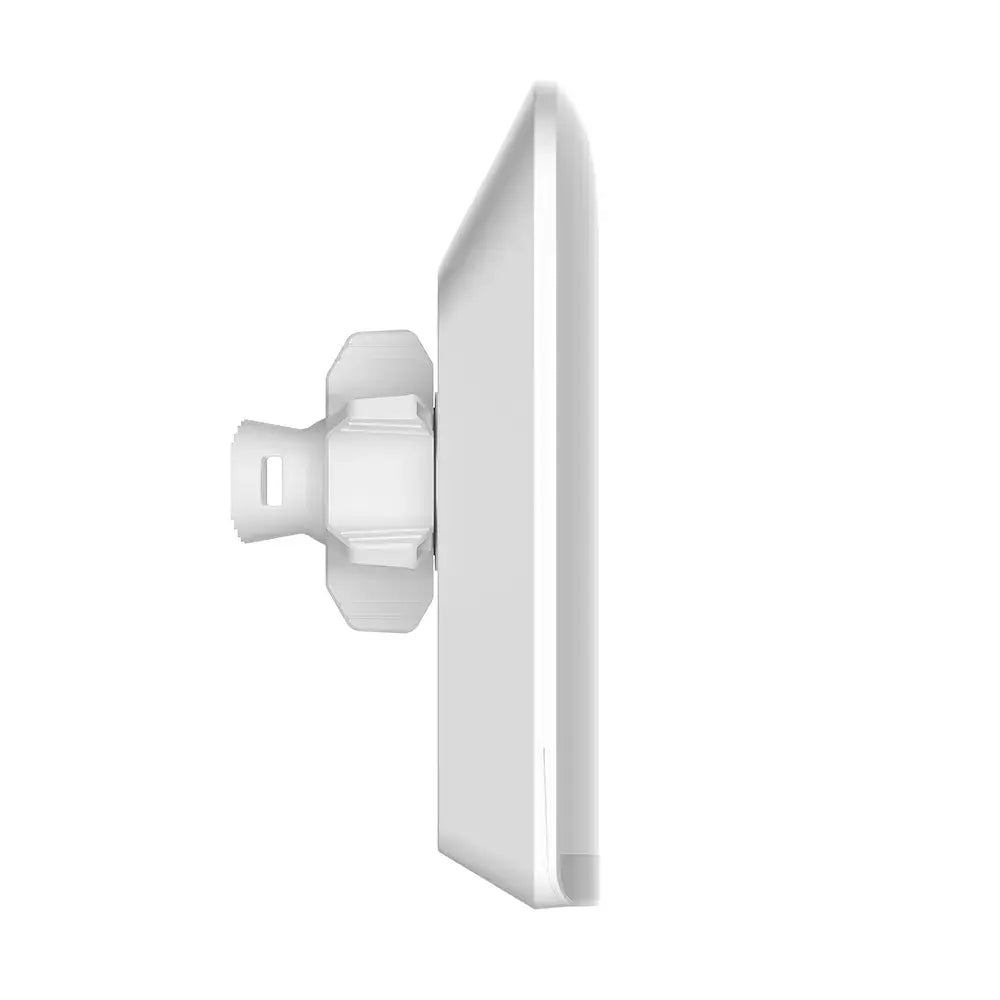

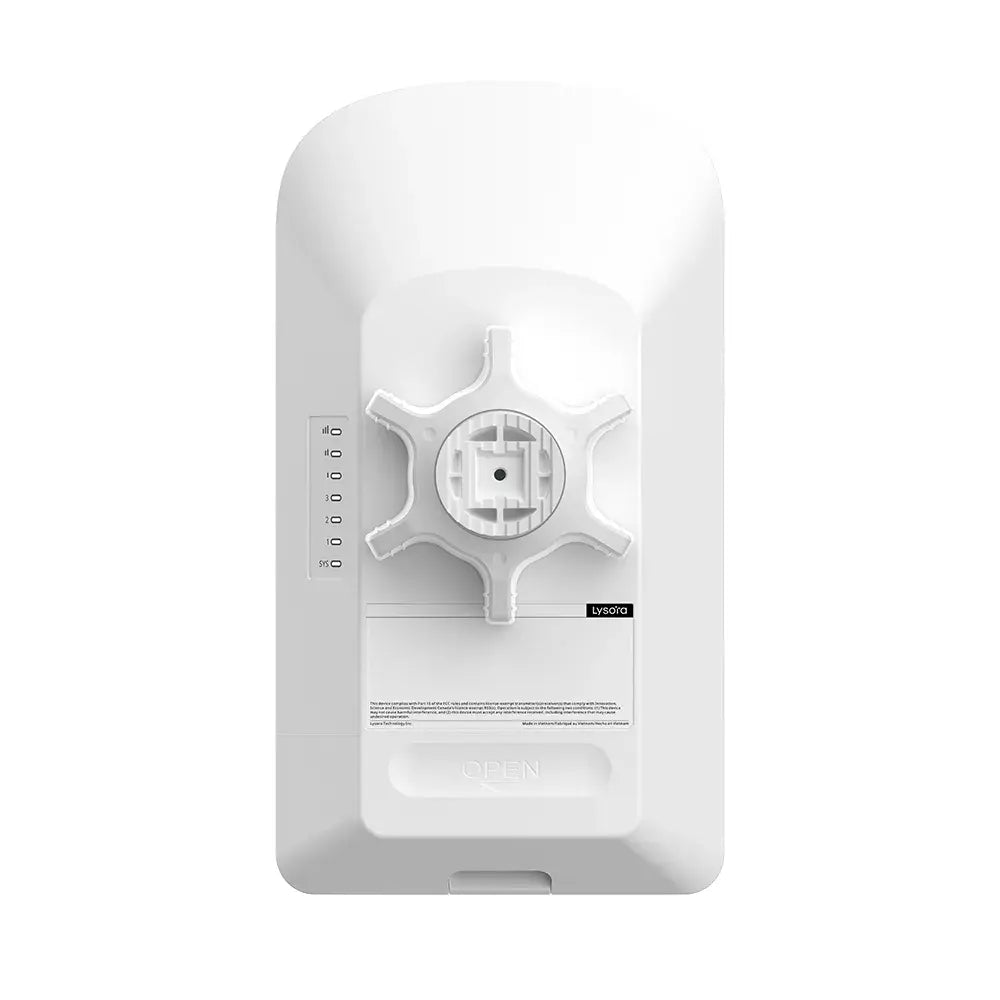

Lysora 5GHz CPE Wireless Bridge Kit

CPE5 — 5 GHz CPE with 16 dBi built-in antenna

Lysora CPE5 is a 5 GHz customer-premises wireless bridge radio with a 16 dBi built-in antenna. Coverage 5 km (3.11 miles). Three gigabit ports. IP55. The complete set lists two DC adapters and two PoE injectors (2-piece kit).

At a Glance

• 5 GHz CPE, 16 dBi antenna, 5 km (3.11 miles)
• 3× 10/100/1000BASE-T ports
• Wireless data rate: 2.4 GHz 300 Mbps; 5 GHz 867 Mbps
• IP55; wall/pole
• Kit includes 2× DC adapter and 2× PoE injector

Wireless

• Wi-Fi standards: IEEE 802.11 a/b/g/n/ac
• Spatial streams: 3
• MIMO: 2.4 GHz 1×1 SISO; 5 GHz 2×2 MIMO
• Channel bandwidth: 2.4 GHz 20/40 MHz; 5 GHz 20/40/80 MHz
• Antenna gain: 2.4 GHz 2 dBi; 5 GHz 16 dBi
• Antenna beam: 31° horizontal / 14° vertical

Physical & Power

• Dimensions: 240 × 133 × 108 mm (excluding mounting bracket)
• Weight: 0.56 kg (without packaging)
• CPU: dual-core, 880 MHz per core; flash 16 MB; RAM 128 MB
• Power consumption: ≤ 12 W
• Power method: DC 12 V / 1 A (connector included); passive PoE injector 24 V / 0.6 A (included); PoE/PoE+
• IP rating: IP55
• Operating temperature: −30°C to +55°C
• Accessories listed: DC adapter ×2, PoE injector ×2

Part number: CPE5
