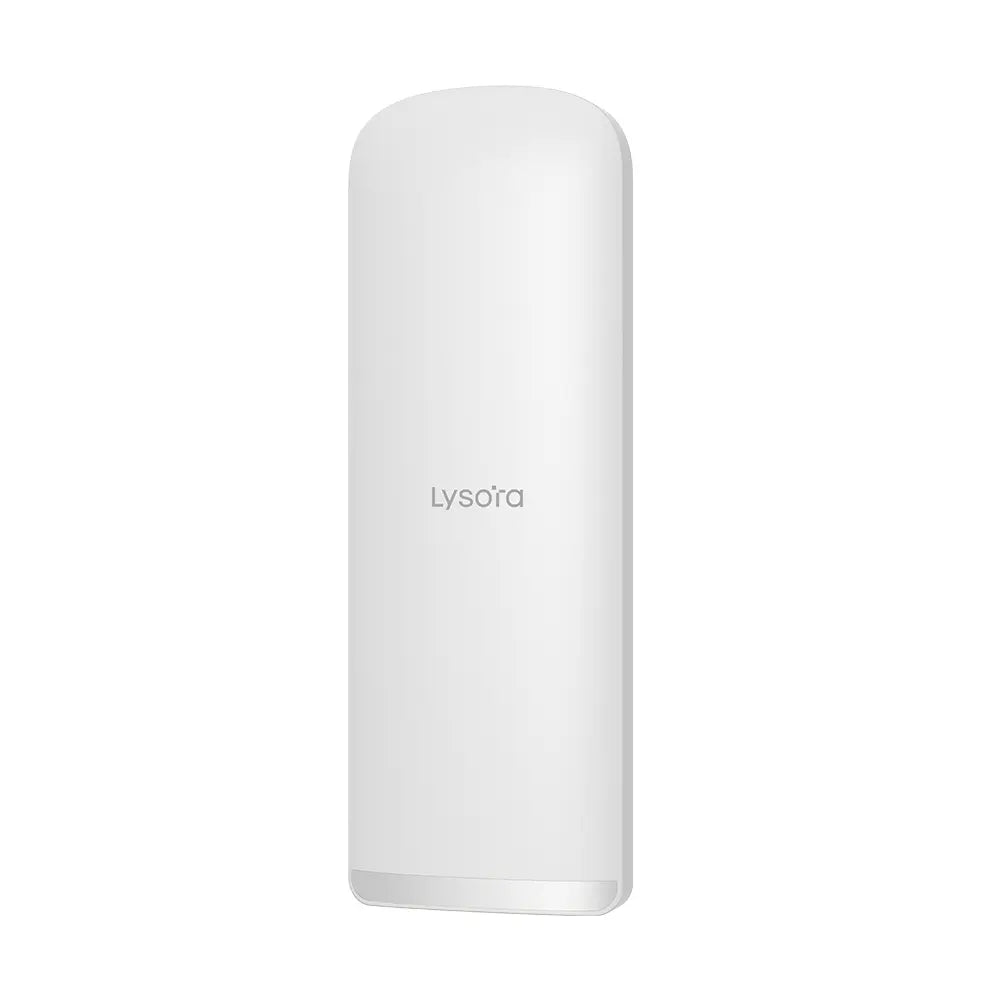

Lysora 5GHz Wireless Bridge Base Station

Base5i — 5 GHz basestation with 15 dBi built-in antenna

Lysora Base5i is a 5 GHz wireless bridge base station with a built-in antenna. Wi-Fi 5 (IEEE 802.11ac), compatible with IEEE 802.11a/b/g/n. Coverage area 5 km (3.11 miles). Wall or pole mount. IP55.

At a Glance

• 5 GHz basestation, 15 dBi-class built-in antenna (sheet: 5 GHz Ant1 13.54 dBi / Ant2 14.11 dBi)
• Coverage 5 km (3.11 miles)

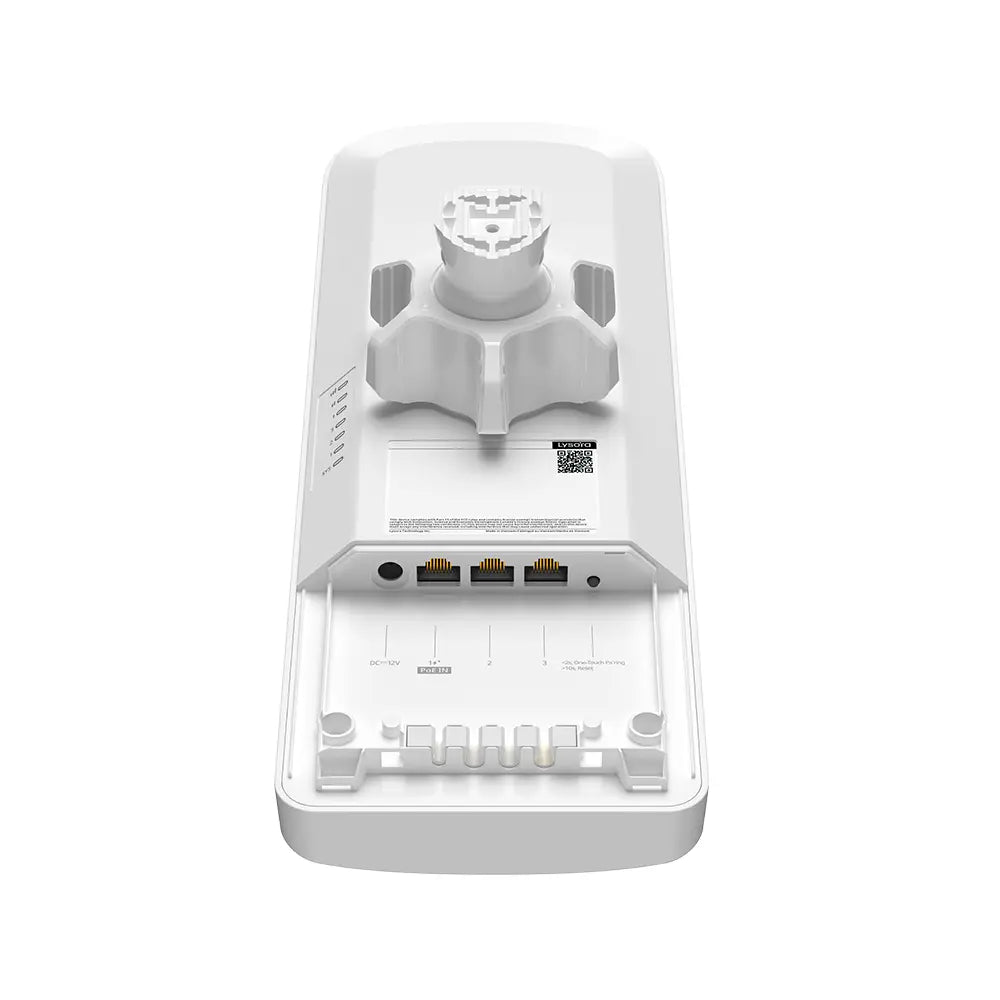

• 3× 10/100/1000BASE-T ports
• Wireless data rate: 2.4 GHz 150 Mbps; 5 GHz 867 Mbps
• 24 V passive PoE injector and 24 V adapter included; also 12 V DC and PoE/PoE+

Wireless

• Wi-Fi standards: Wi-Fi 5 (IEEE 802.11ac); compatible with IEEE 802.11a/b/g/n
• Spatial streams: 3
• MIMO: 2.4 GHz 1×1 SISO; 5 GHz 2×2 MIMO
• Channel bandwidth: 2.4 GHz 20/40 MHz; 5 GHz 20/40/80 MHz
• Antenna horizontal orientation: 120°; vertical: 13°
• 2.4 GHz antenna gain: 1.22 dBi

Physical & Power

• Dimensions: 355 × 124 × 148 mm (excluding mounting bracket)
• Weight: 0.83 kg (without packaging)
• CPU: dual-core, 880 MHz per core; flash 16 MB; RAM 128 MB
• Power consumption: ≤ 12 W
• Power method: DC adapter 24 V / 0.6 A (included); 24 V passive PoE injector (included); DC 12 V / 1 A; PoE/PoE+
• PoE power pins: 1–2 (+), 3–6 (−); 4–5 (+), 7–8 (−)
• IP rating: IP55
• Operating temperature: −30°C to +65°C

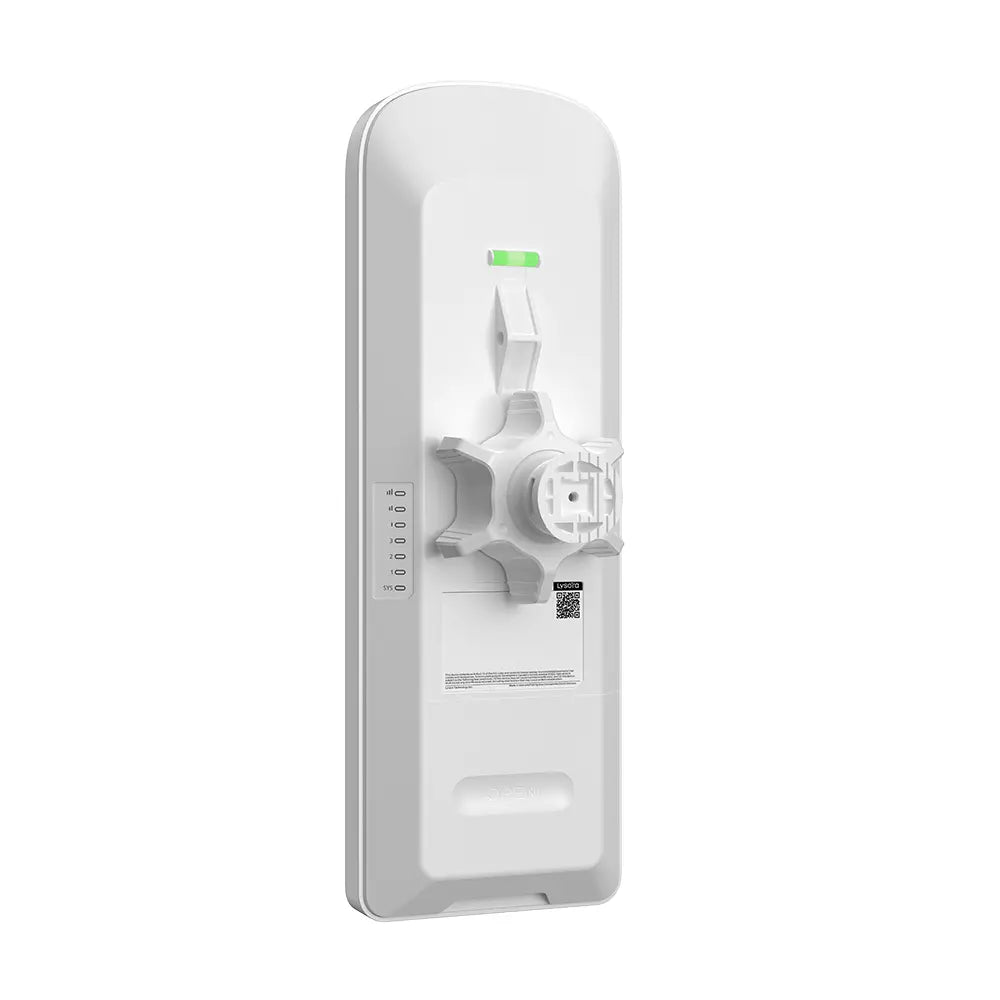

• Mounting: wall/pole

Part number: BASE5I
