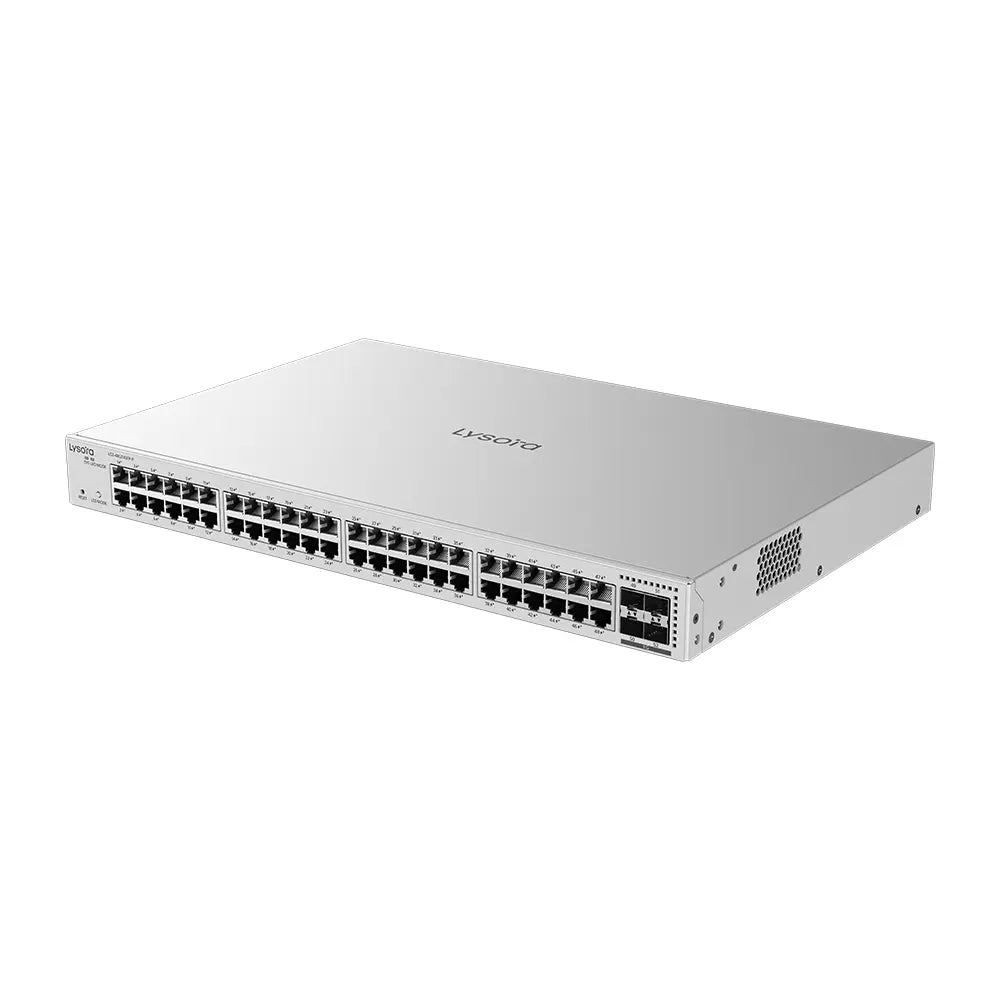

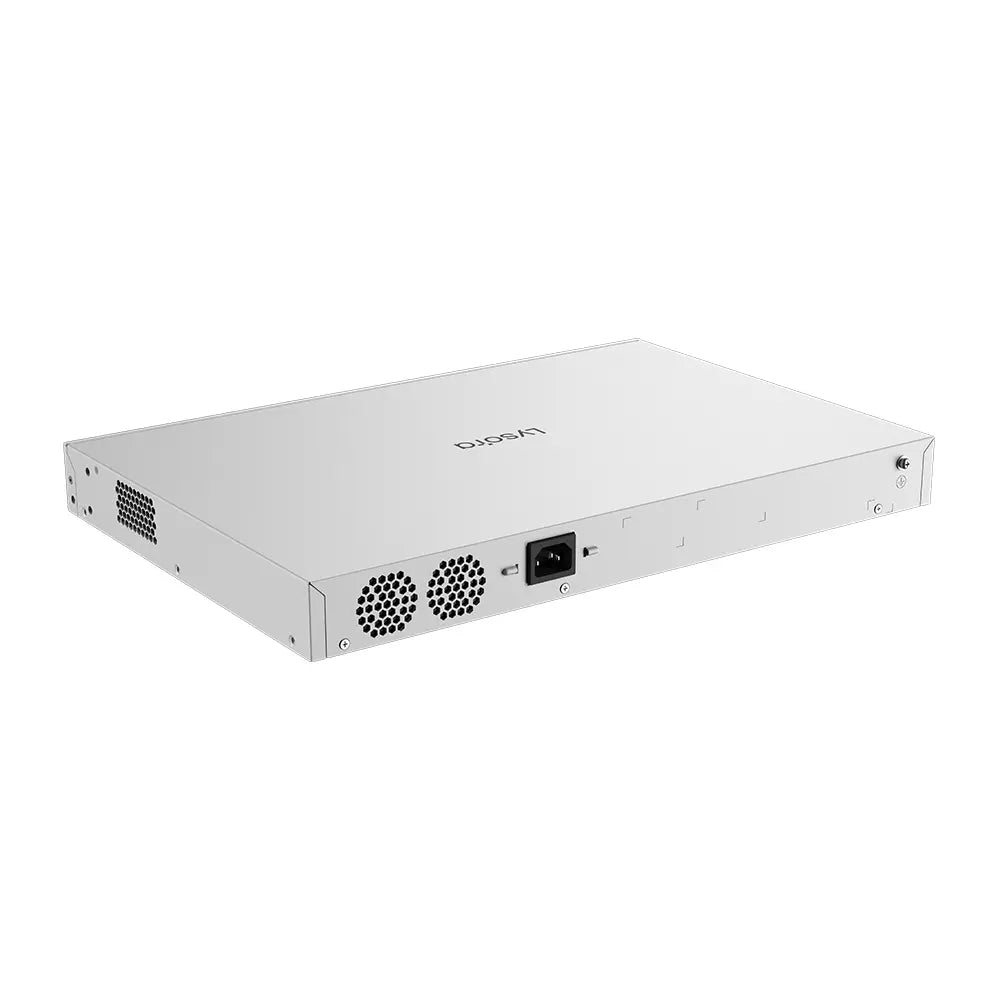

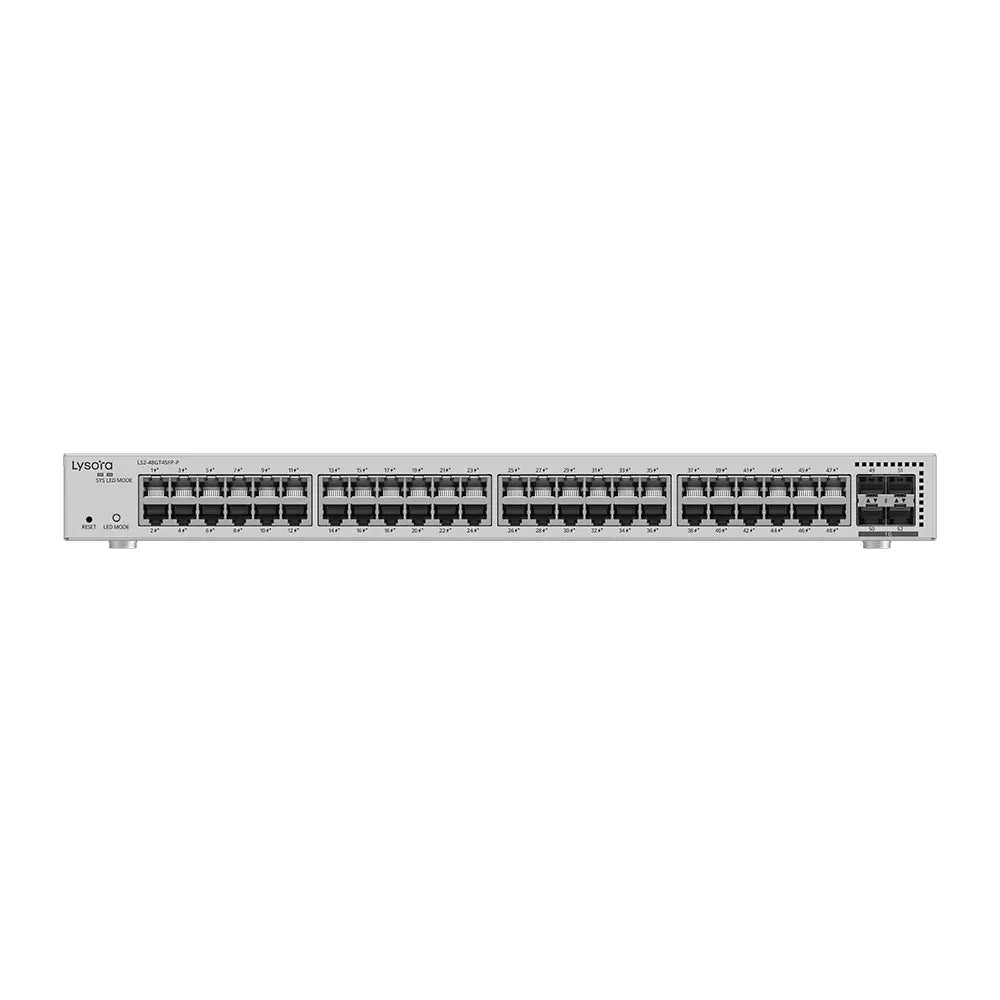

48-Port Managed PoE Switch

48-Port L2 Managed PoE Switch with 370 W PoE Budget

Lysora LS2-48GT4SFP-P is a 48-port Layer 2 managed gigabit PoE switch with a 370 W PoE budget and 4× 1GE SFP uplinks. The sheet does not list 10G SFP+ on this SKU.

At a Glance

• 48× PoE/PoE+ out, 370 W budget
• 48× gigabit RJ45 + 4× 1GE SFP (not SFP+)
• Switching capacity 104 Gbps; forwarding 77.37 Mpps
• 2× fixed fans; rack/desk

Ports

• Total RJ45 ports: 48
• Optical ports: 4
• 1GE SFP ports: 4
• 10GE SFP+ ports: none listed
• 10/100/1000BASE-T ports: 48

PoE

• PoE/PoE+ out ports: 48
• PoE budget: 370 W
• PoE power pins: 1–2 (+), 3–6 (−)

Hardware

• Switching capacity: 104 Gbps
• Forwarding rate: 77.37 Mpps
• Buffer: 16 Mbit
• 2× fixed fans; air cooling, side-to-rear

Physical & Power

• Dimensions: 440 × 293 × 44 mm
• Weight: 4.32 kg (without packaging)
• Mounting: rack/desk
• Enclosure: metal
• Power: 100–240 V AC, 50/60 Hz
• Max. power consumption: 46 W (no PoE load); 450 W (full PoE)
• Operating temperature: 0°C to +50°C
• Warranty: 3 years

Software

• Layer 2 managed switching (per datasheet title)
• Web / cloud / app management as listed on the Lysora sheet
• PoE watchdog and camera-oriented features where the family sheet lists them
• NDAA compliant (PDF: NDAA Complain)

Part number: LS2-48GT4SFP-P

Downloads

Specification Sheet (PDF)
