16-Port Gigabit PoE+ Switch

16-Port Cloud Managed PoE Switch with 250 W PoE Budget

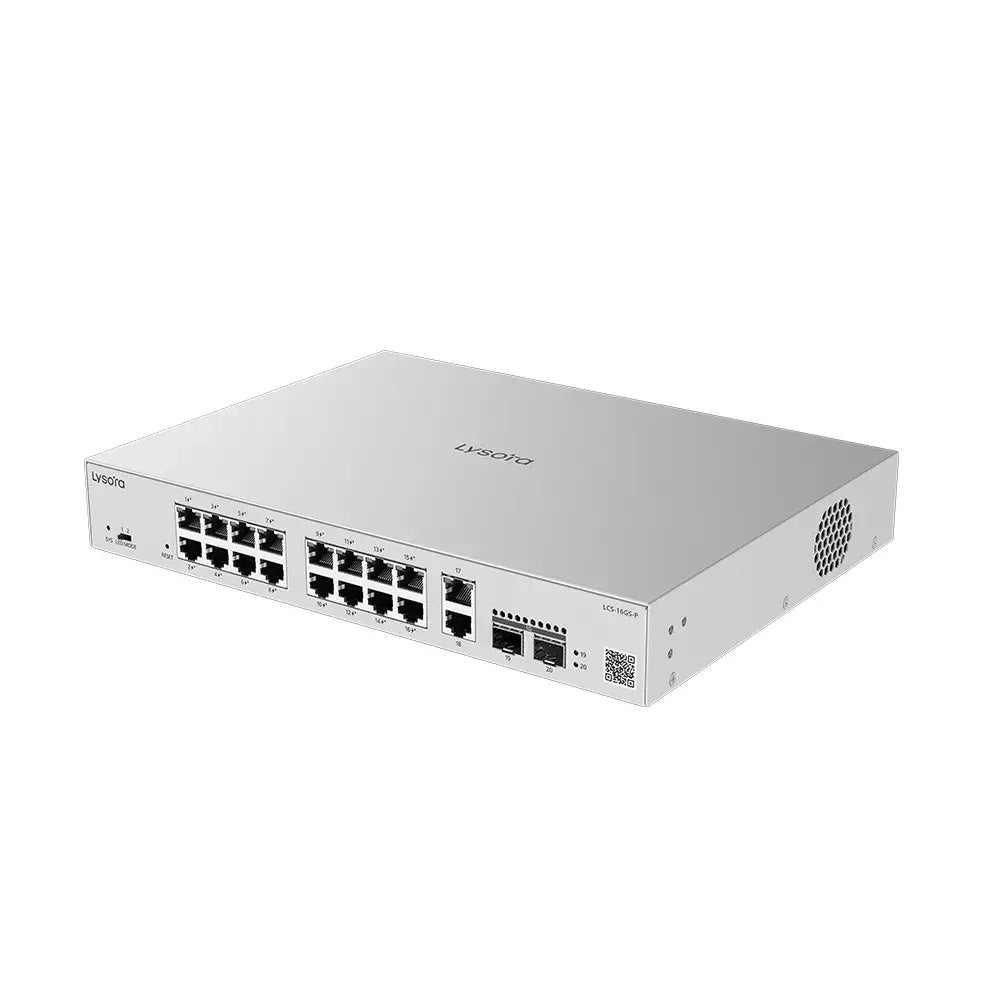

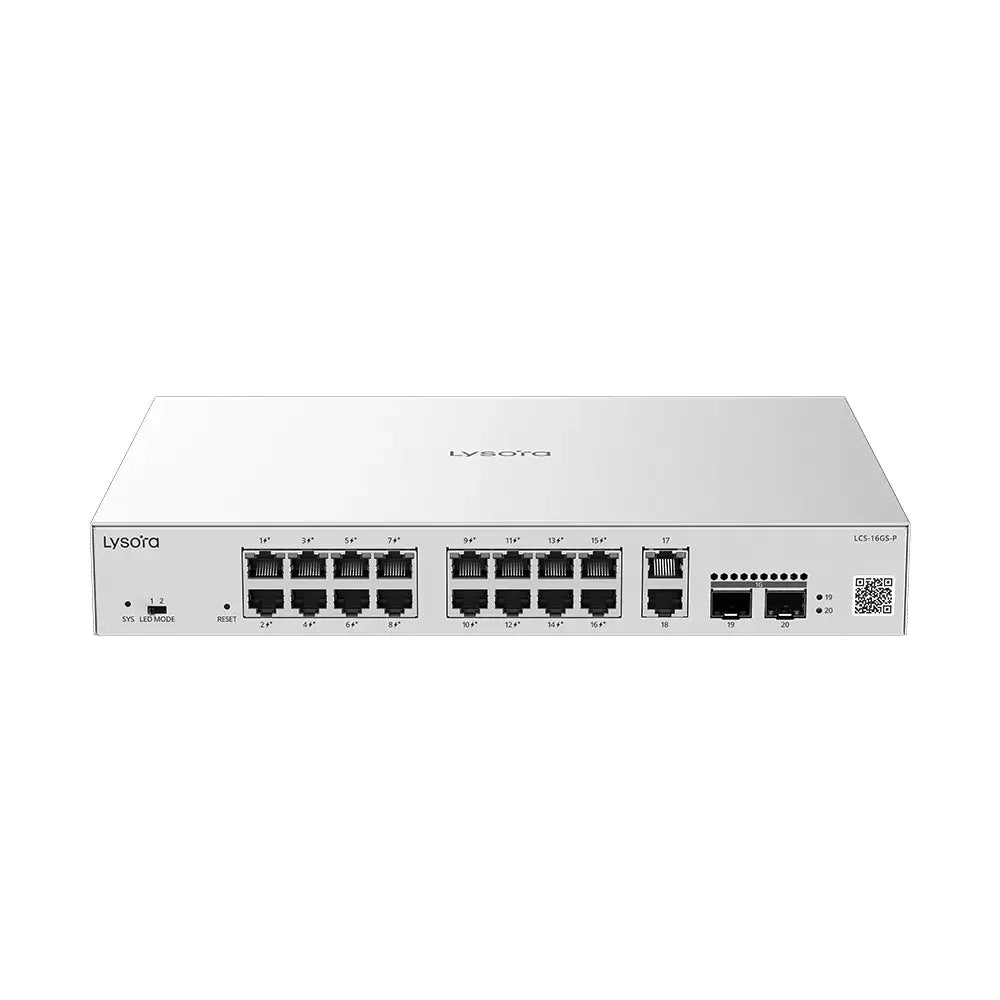

Lysora LCS-16GS-P is a 16-port cloud-managed gigabit PoE switch. The specification sheet states a 250 W PoE budget (not 240 W). 18× 10/100/1000BASE-T RJ45, 16 PoE/PoE+ out, 2× 1GE SFP.

At a Glance

• 16× PoE/PoE+ out, 250 W budget (from PDF)
• 18× gigabit RJ45; 2× 1GE SFP
• Switching capacity 40 Gbps; forwarding 29.7 Mpps
• 1× fixed fan; rack/desk

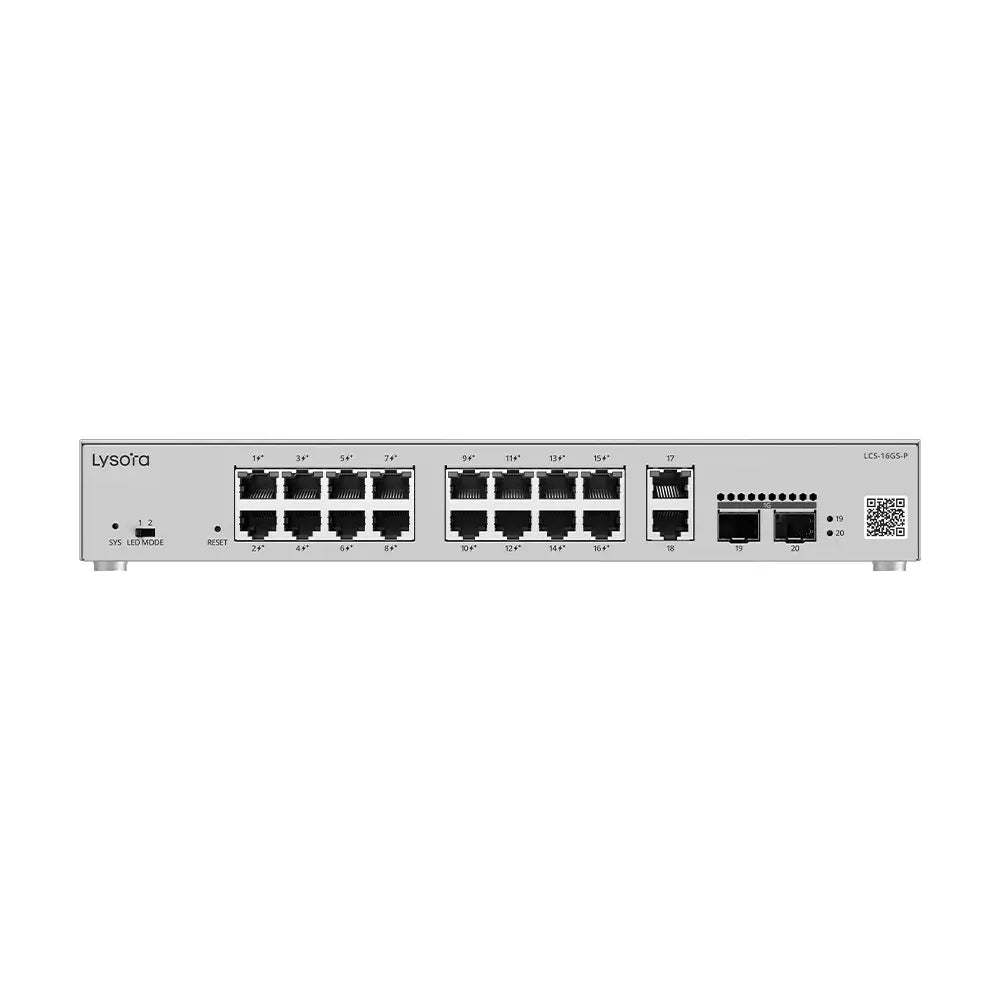

Ports

• Total RJ45 ports: 18
• Optical ports: 2
• 1GE SFP ports: 2
• 10/100/1000BASE-T ports: 18

PoE

• PoE/PoE+ out ports: 16
• PoE budget: 250 W
• PoE power pins: 1–2 (+), 3–6 (−)

Hardware

• Switching capacity: 40 Gbps
• Forwarding rate: 29.7 Mpps
• Buffer: 4.1 Mbit
• CPU: single-core, 500 MHz; flash 8 MB
• 1× fixed fan; air cooling, left-to-right

Physical & Power

• Dimensions: 300 × 223 × 43.6 mm
• Weight: 2.12 kg (without packaging)
• Mounting: rack/desk
• Enclosure: metal

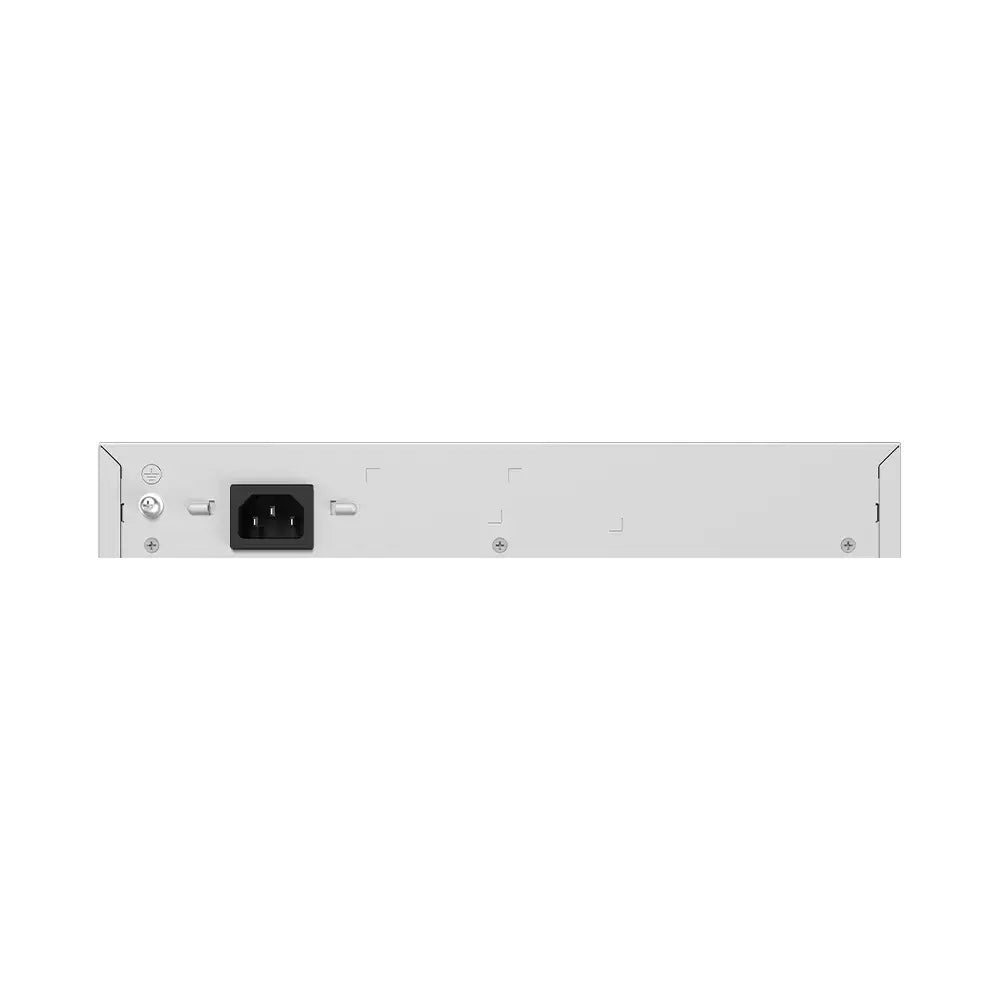

• Power: 100–240 V AC, 50/60 Hz; rated input current 4.5 A
• Max. power consumption: 15 W (no PoE load); 265 W (PoE full load)
• Operating temperature: 0°C to 40°C
• Warranty: 3 years

Software

• PoE watchdog
• Online upgrade
• Jumbo frame length (MTU): 10000 bytes
• EEE; cable test
• IEEE 802.1Q VLAN; VLAN on LAN ports
• Static MAC address; interface flow control; inbound/outbound rate limiting
• DNS client; DHCP client
• Port isolation; broadcast / multicast / unknown-unicast storm control
• CPU protection policy; DHCP snooping
• Web, cloud, and app management; mirroring; Self-Organizing Network; camera detection
• NDAA compliant (PDF: NDAA Complain)

Part number: LCS-16GS-P
