32 Inch Security Monitor
$484.00
Skip to product information
32 Inch Security Monitor
$484.00

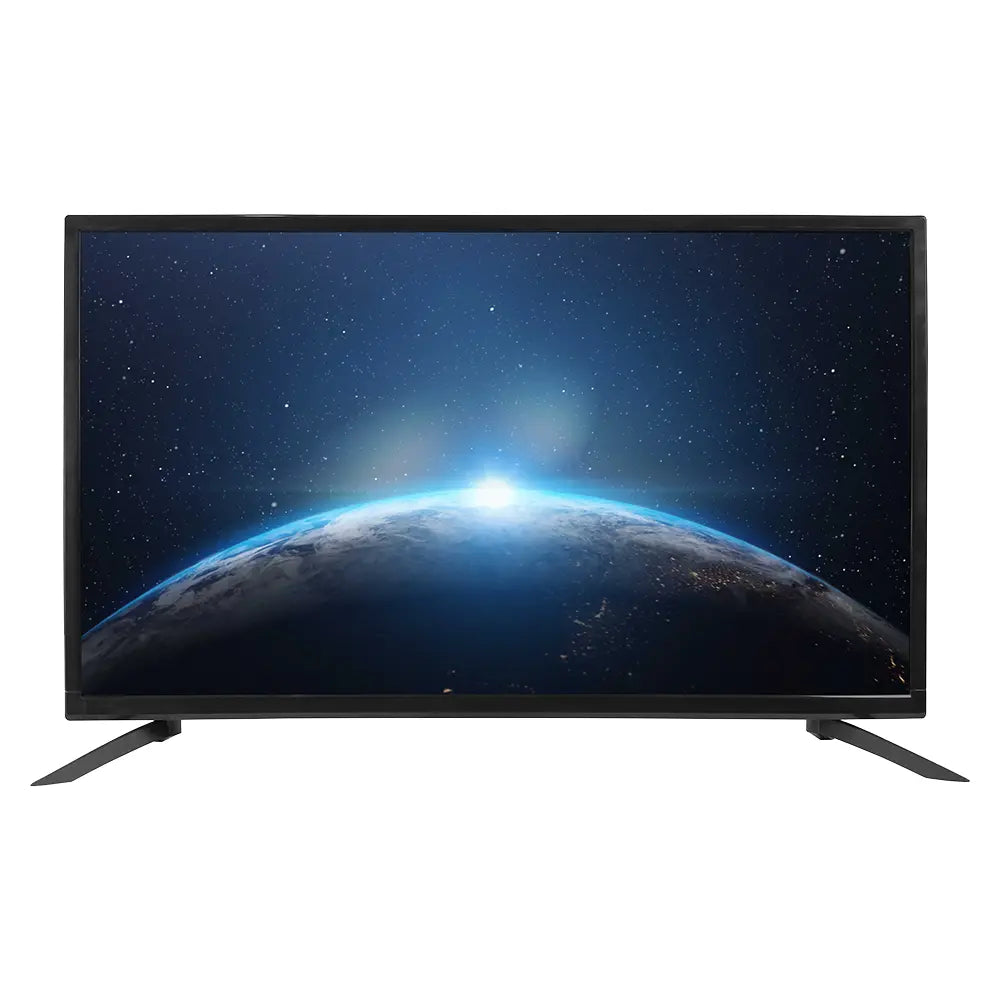

32-inch high-definition LCD monitor
LED-32-LY is a 32-inch high-definition LCD monitor for live camera view and playback from a recorder. Connect HDMI (or VGA) from the NVR or DVR to this screen.
At a Glance
- HD: 1920×1080 has higher resolution than ordinary monitors
- When the device is turned on, the resolution of the input signal is automatically detected at the bottom left of the screen
- Industrial screen, high brightness, high contrast
- High-precision standard voltage-stabilized power supply, specially designed for industrial equipment, supporting 24 hours × 365 days of uninterrupted operation
- 8-bit image chip processing technology, high-pixel progressive scanning
- Supports intelligent 3D noise reduction, afterimage elimination, dynamic brightness, contrast and color optimization technology
- 5 ms ultra-fast response time avoids image smearing during high-speed operation
Panel Properties
- LCD size: 32 inches
- Resolution: 1920×1080 (support 3840×2160 / 30Hz)
- Aspect ratio: 16:9
- Brightness: 350 cd/m² (center point, typical value)
- Contrast: 3000:1
- Viewing angle: 178/178 (Typ.)
- Response time: 5 ms (Gray to Gray)
- Color depth: 16.7M
Interface
- Control method: panel / remote control
- Power input: 110V / 220V 50Hz / 60Hz
- Input interface: HDMI / VGA / USB
- Output port: audio output
- Power consumption: 50W
Physical & Power
- Color: black
- Material: professional fireproof hardware iron back plate, flame retardant plastic frame (base is plastic)
- Dimensions: 731 × 432 × 85 mm excluding foot height (40 mm)
- Package size: 813 × 124 × 509 mm (L×B×H)
- Installation: base, wall mounted (100 mm × 200 mm)
- Net weight / gross weight: 3.6 kg / 5 kg
- Outer packaging weight: 11.5 kg
- Working temperature: best suited to 20 degrees
- Wet working environment: 10%–90% RH
Attachment List
- Power cord, warranty card, manual, HDMI cable (gift), base, self-tapping screws PA4×12 mm (one bag)
Part number: LED-32-LY
