8MP Vandal Dome Camera
$410.00
Skip to product information

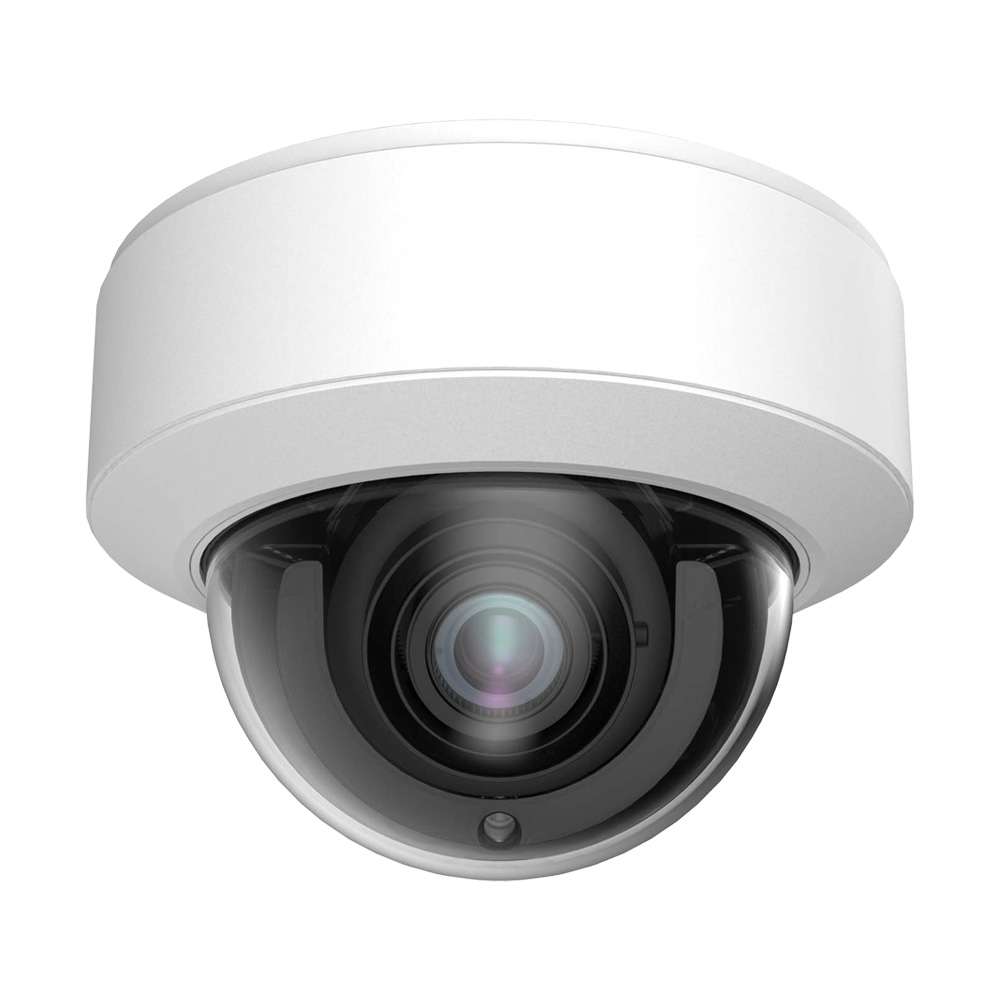

8MP Vandal Dome Camera
$410.00
8MP HD AI Dome Network Camera. Titanium IP camera. Power is PoE or 12V DC as listed in the spec sheet.
At a Glance
- Max.resolution: 8MP ( 3840 x 2160 )
- ICR auto switch, true day / night vision H.265 Day&Night
- 3D DNR, true
- 20~30m IR night view distance
- 1CH audio input; 1CH built-in MIC
- Built-in micro SD card slot, up to 256GB
- DC12V/PoE power supply
- Support three streams
- Support mobile surveillance by smart phones with iOS and Android OS
Camera Specs
- Image Sensor: 1 / 2.8" CMOS Power Supply DC12V/PoE
- Image Size: 3840 x 2160 Power Consumption < 9W
- Resolution: 4MP( 2592 x 1520 ), 2K ( 2560 x 1440 ), 3MP ( 2304 x 1296 )
- Electronic Shutter: 1 s ~ 1 / 100000 s Operating - 30 °C ~ 60 °C (-22 °F~140°F)
- Iris Type: Fixed Iris
- Min. Illumination: 0.02 lux@F1.6, AGC ON; 0 lux with IR
- Lens: 2.8mm@F1.6, Horizontal FoV:109.7°;Vertical FoV:77.2°;Diagonal FoV:116.9° Installation Ceiling mounting; Wall mounting
- Focus: Fixed
- Lens Mount: M 12
- Wide Dynamic Range: 120dB
- BLC: Yes
- HLC: Yes
- Defog: Yes
- Digital NR: 3D DNR DIMENSIONS
- Angle Adjustment: Pan : 0°~ 355°, Tilt : 0°~ 67°, Rotation : 0°~ 355°
- Video Compression: Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG
- Main Stream: 50Hz : 8MP/6MP/5MP/4MP/2K/3MP/1080P/720P(1~25fps)
- Sub Stream: 720P/D1/CIF/480 x 240 (60Hz: 1~30fps; 50Hz: 1~25fps )
- Third Stream: D1/ CIF / 480 x 240 (60Hz: 1~30fps; 50Hz: 1~25fps)
- Bit Rate: 64 Kbps ~ 12 Mbps
- Audio Compression: G711A / U
- Audio: 1CH audio input ; 1CH built-in MIC
- Face
Physical & Power
- Network: RJ 45 B6-W-2 BRACKET11-W TD-YZJ0701A
- Storage: Built-in micro SD card slot; up to 256GB; Network remote storage; micro SD card storage
- Alarm: 1CH alarm input; 1CH alarm output
- Reset: Yes
- PoE: 1CH audio input; 1CH built-in MIC
- Dimensions ( mm ): Ø 119 x 87.8
- Weight ( net ): Approx. 0.64KG
Product Features
From the ENS product page for this 4K vandal dome.
Intelligent Analytics
AI based on a CNN architecture (1.5 TOPS) identifies humans, motor vehicles, and non-motor vehicles to cut false alarms.
- Perimeter
- Face
- Statistics: target counting by line / area, crowd density, heat map
- Object
Perimeter Protection
Deep-learning perimeter protection recognizes humans and vehicles. Line crossing, region intrusion, and entrance/exit detection reduce false alarms.
4K Resolution
- Sharp 4K video imaging
- Extra detail for forensic review
- Enhanced situational awareness
Human and Vehicle Detection
- Focus on human and vehicle classification
- Detect loitering and vandalism in real time
- Accurately detect a human or vehicle, reducing false alarms
Built-In Mic
- One-way audio so you can warn off intruders
Intrusion Detection
- Home entrance and exit protection
- Asset theft and vandalism prevention
- Clear images day and night
- Home or business perimeter protection
24/7 Monitoring
- Business asset protection
- Home security day and night
- Workplace safety
This camera's junction box is Camera Junction Box (hides the wires) - White, B6-W-2 larger. It hides the wires.
Part number: IP-5VP8E3B1-28
