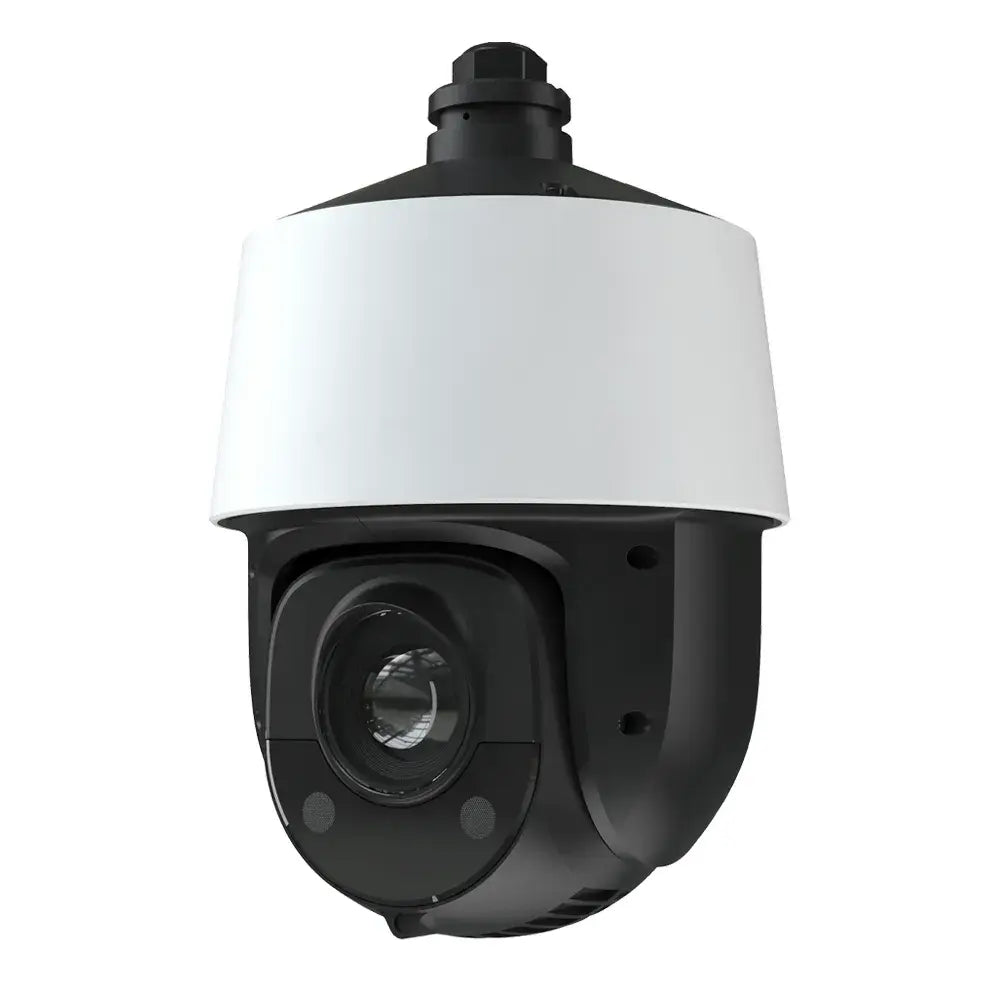

8MP 25X PTZ Camera

Titanium IP-5PT8ISN27-25X-2 PTZ which adopt SONY latest 4K images. Titanium IP camera. Power is PoE or 12V DC as listed in the spec sheet.

At a Glance

• 8MP H.265
• Perimeter
• open area. H.265 video compression reduces bit rate down to 50% of H.264 without loss. With its built-in 1.5Tops AI
• engine, the PTZ camera could detect and classify max 15 objects per scene. When any of them intrude restricted area, the
• PTZ camera will trace, zoom fit in center of screen, snap and record and trigger alert. The gimbal rotation speed is
• improved for tracing fast object. The IR brightness is enhanced 200%, which improves night vision distance above 150m.
• This PTZ conforms to the ONVIF specifications ensuring interoperability between network video products regardless of
• manufacturers, and also complies with NDAA 2019. IP-5PT8ISN27-25X-2 PTZ have enhanced body material,
• built-in turbo fan and heater for 7/24H work in outdoor weather, This series has also added alarm and audio interface, etc.
• IP-5PT8ISN27-25X-2 is a minor improved version comparing TD-8483IS2N, it has true IK10 certification including lens cover,
• and adapt the latest components and thus available in longer supply period. With excellent picture quality and good
• ● 1/2.8″ SONY progressive scan CMOS ● Smart H.265/H.264+/H.264
• ● Up to 3840x2160 resolution ● Intelligent Video content analytics
• ● Mini illumination: ● Smart tracking of human/vehicle
• Color: 0.01 lux @ (F1.65 AGC ON) ● Smart
• 0 Lux with IR ● ONVIF, API and SDK
• ● 25x optical zoom, 16x digital zoom ●
• ● HDR, 3D DNR, Smart IR 150m ●
• Wide range area intrusion, perimeter protection and alarm, such as parks, scenic spots, stations and venues,
• industrial park.

Camera Specs

• Focus: length f=4.8-120mm lens,25x optical zoom
• Third Stream: 60Hz:(1920 x 1080, 1280 x 960, 1280 x 720, 704 x 480, 640 x 480, 352 x 240) @30fps
• Audio: Bit Rate 64K bps; Interface 1 audio input(MIC in); 1 audio output, line level, impedance,600Ω
• Day & Night: control Auto/Manual ,time schedule
• Smart IR: Yes
• IR Distance: 150m (492 f.t.) ,dual stack IR LED array, 6pcs into 3groups
• Field of View: Horizontal: 57.6°~2.4°; Vertical: 33.4°~ 1.4°; Diagonal: 64.5°~ 2.9°(wide-tele) ±5%

Physical & Power

• Network: 50Hz: 3840 x 2160,2560 x 1440,1920 x 1080,1280 x 960,1280 x 720 @25fps; Interface 1 RJ45 10M/100M Adaptive Ethernet ,Support
• Storage: condition -40°C ~ 70°C ; ≤ 95% RH
• Alarm: Interface 1 Alarm input(Dry contact); 1 Alarm output; actions, such as Preset, Cruise, Track, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to; Linkage
• Reset: button Yes
• PoE: +
• Power Supply: DC12V±25%,3000mA ,
• Dimensions: Φ 173mm x 268mm ( 6.8 inch Φ x 10.55 inch); 145 m
• Weight: Approx. 2.1 Kg (4.63 lb.)

Part number: IP-5PT8ISN27-25X-2

Downloads

Specification Sheet (PDF)
