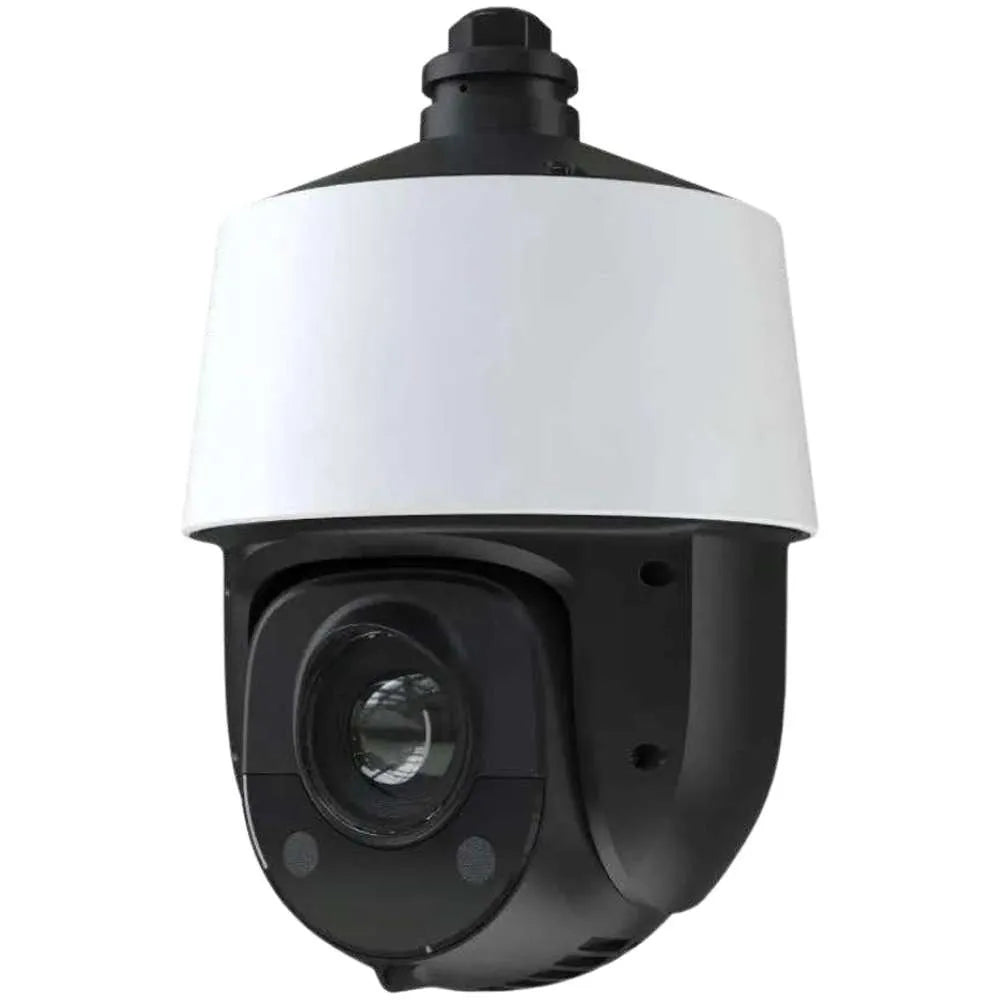

4MP 25X PTZ Camera

25X 4MP 150m IR Network Smart PTZ. Titanium IP camera. Power is PoE or 12V DC as listed in the spec sheet.

At a Glance

• 4MP H.265
• Perimeter
• IP-5PT4ISN27-25X PTZ camera which adopts 4MP BSI images sensor, with high quality 25x optical
• zoom lens, could deliver top-notch 2560x1440@30fps image details over a wide open area. The
• PTZ camera could detect and classify max 15 objects per scene. When any of them intrude restricted area, the PTZ
• for tracing fast object. The IR brightness is enhanced 200%, which improves night vision distance above 150m. This PTZ
• conforms to the ONVIF specifications ensuring interoperability between network video products regardless
• of manufacturers, and also complies with NDAA 2019. The IP-5PT4ISN27-25X series PTZ has enhanced body material,
• built-in turbo fan and heater and is designed for 7/24H work in outdoor weather. This series has also added alarm
• and audio interface, etc. With excellent picture quality and good protection, the camera could meet the demand of
• small size of surveillance application.
• ● 1/2.8″ BSI progressive scan CMOS ● Smart H.265+/H.265/H.264+/H.264
• ● Up to 2560x1440 resolution ● Intelligent Video content analytics
• ● Mini illumination: ● Smart tracking of human/vehicle
• Color: 0.01 lux @ (F1.65 AGC ON) ● Smart
• 0 Lux with IR ● ONVIF, API and SDK
• ● 25x optical zoom, Accurate and fast focusing ●
• ●
• Application:
• Wide range area intrusion, perimeter protection and alarm, such as parks, scenic spots, stations and venues,
• industrial park.

Camera Specs

• Focus: length f=4.8-120mm lens,25x optical zoom
• Third Stream: 60Hz:30fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 480, 640 x 480, 352 x 240)
• Audio: Bit Rate 64K bps; Interface 1 audio input(MIC in); 1 audio output, line level, impedance,600Ω
• Day & Night: control Auto/Manual ,time schedule
• Smart IR: Yes
• IR Distance: 150m (492 f.t.)
• Field of View: Horizontal: 55° ~2.4°; Vertical: 33° ~ 1.4° ; Diagonal: 61.5° ~ 2.8° (wide-tele)

Physical & Power

• Network: Max Resolution 2560x1440; Interface 1 RJ45 10M/100M Adaptive Ethernet ,Support
• Storage: condition -40°C ~ 70°C ; ≤ 95% RH
• Alarm: Interface 1 Alarm input(Dry contact); 1 Alarm output; actions, such as Preset, Cruise, Track, Memory Card Video Record, Trigger Recording, Upload to FTP/Memory; Linkage
• Reset: button Yes
• PoE: +
• Power Supply: DC12V±25%,3000mA ,PoE+ (802.3.at, class 3), max 23W include IR ON+PTZ working
• Dimensions: Φ 173mm x 247mm (Φ6.8 inch x 9.7 inch); 40m
• Weight: Approx. 2.1 Kg (4.63 lb.)

Part number: IP-5PT4ISN27-25X

Downloads

Specification Sheet (PDF)
