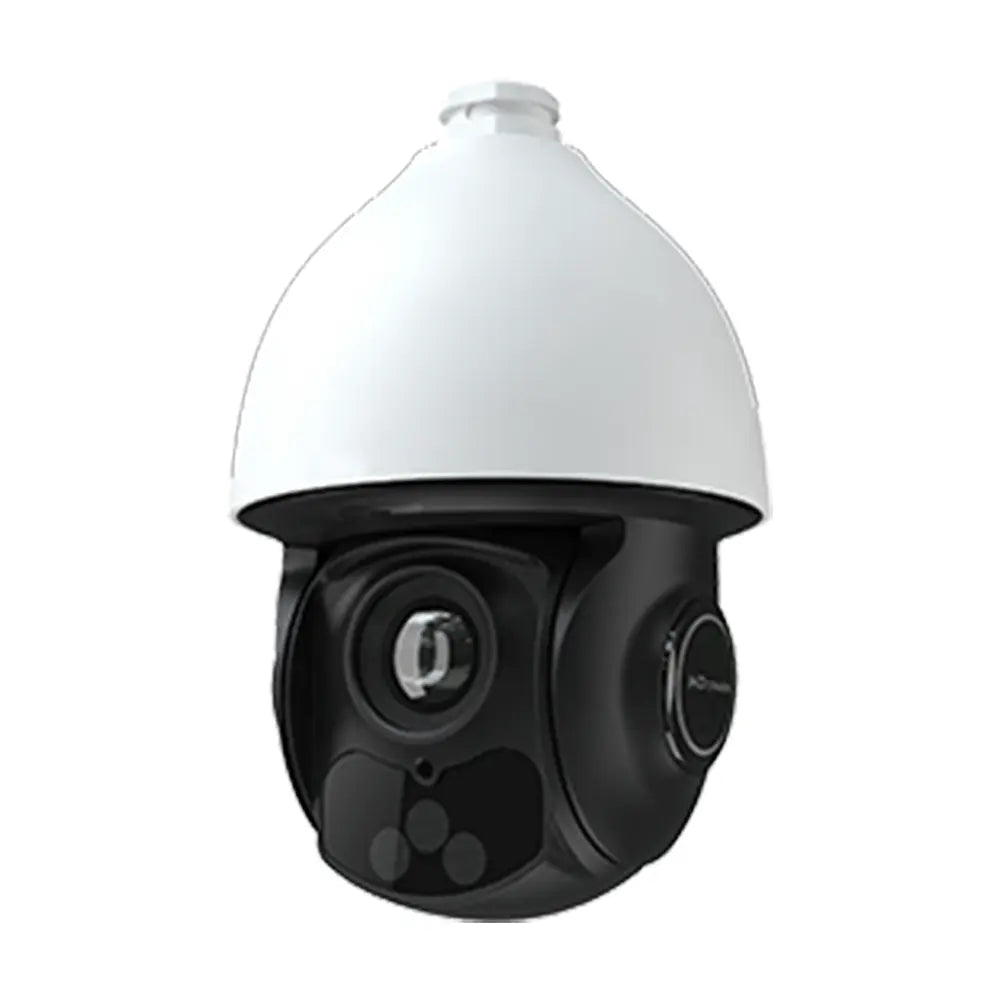

4MP 40X PTZ Camera

4MP 40X PTZ Camera. Titanium IP camera. Power is PoE or 12V DC as listed in the spec sheet.

At a Glance

• Hybrid Ultra HD
• Perimeter

Camera Specs

• Focus: length f=4.5 ~ 180mm lens, 40x optical zoom
• EIS: Optional Built-in gyro sensor for electrical image stable within 30x-40x TBC
• Third Stream: 60Hz:30/60fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 480, 640 x 480, 352 x 240)
• Audio: Bit Rate 64K bps; Interface 1 audio input, line level, 2.0-2.4Vpp,impedance 1KΩ; 1 audio output, line level, impedance,600Ω
• Day & Night: control Auto/Manual ,time schedule
• Smart IR: Yes
• IR Distance: 350m /1148 f.t., 8pcs 4 groups of dual stacks IR Arrays
• Field of View: H: 62.4°~1.9°; V: 35.3°~ 1°; D: 70.24°~ 2.1°(wide-tele)

Physical & Power

• Network: Max Resolution 2880x1620 ?(16:9 aspect ratio); Interface 1 RJ45 10M/100M Adaptive Ethernet ,Support
• Storage: condition -40°C ~ 70°C ; ≤ 95% RH
• Alarm: Interface 1 Alarm input(Dry contact); 1 Alarm output; actions, such as Preset, Cruise, Trace, Memory Card Video Record, Trigger Recording, Notify Surveillance Center; Linkage
• Reset: button Yes
• Dimensions: Φ 300mm x 197mm (Φ11.8 inch x 7.75 inch)

Part number: IP-5PT4IE3-40X-2

Downloads

Specification Sheet (PDF)
