Solar-Powered 4MP Bullet Security Camera Kit (2.8mm, Titanium)
$2,195.00

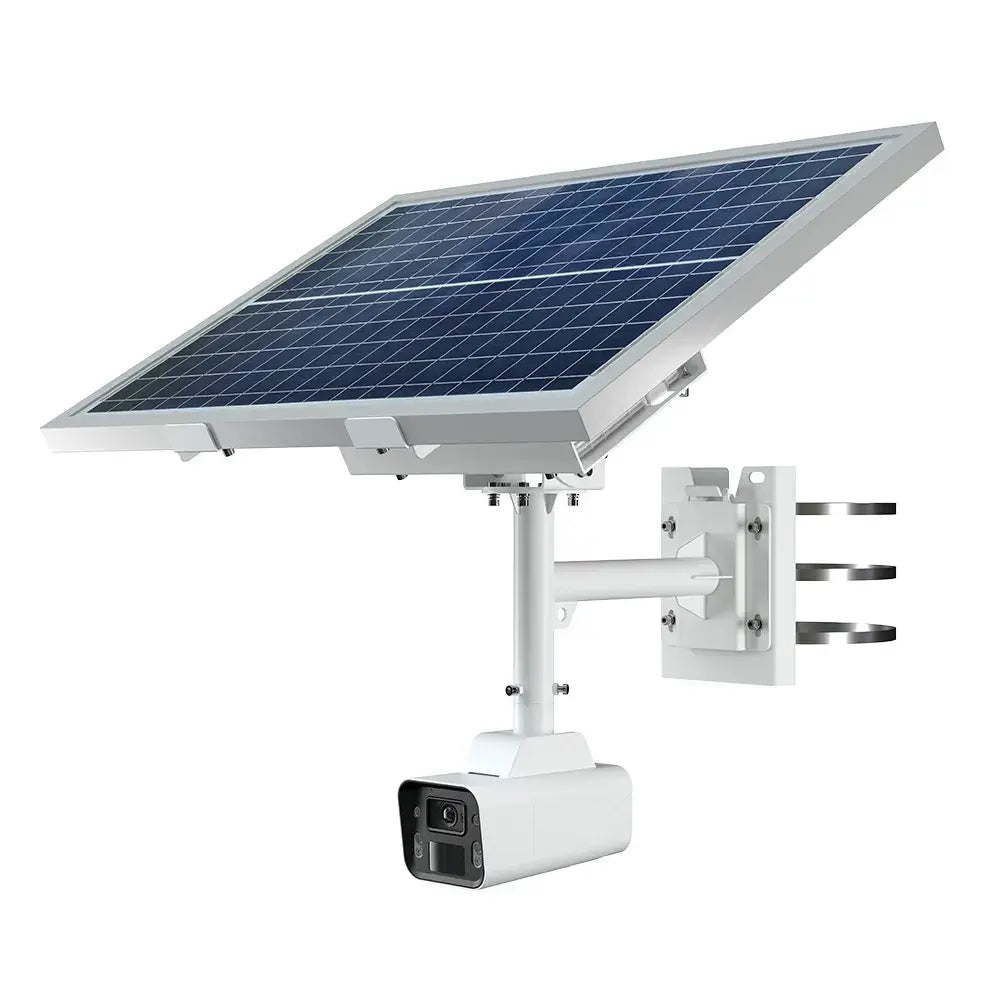

Solar-powered outdoor network camera kit
IP-5IR4SP6-28-KIT is a solar-powered outdoor network camera kit. The attached PDF is the quick start guide (camera family TD-9846SP1). The kit includes the camera, solar panel, battery, connecting bracket, pole mount, waterproof connector kit, screwdriver, and screws.
Activate and configure the camera on the LAN before installing it outside. Charge the Li-ion battery after 3 months of storage. The camera has a white light illuminator — do not stare at the operating light source.
At a Glance
- Solar panel, battery, bullet network camera, connecting bracket, and pole mount
- Built-in microphone and speaker
- Micro SD card slot and SIM card slot (behind a screw-down cover)
- Network connector, power interface, and RS-485
- Reset button
- White light illuminator
- Pole mount for poles 80–120 mm in diameter
- Web login (default IP 192.168.226.201) or mobile app via QR code
- NAT login after SIM insert: www.autonat.com (device ID / QR number)
Kit Contents (from QSG)
- Solar panel
- Battery
- Camera
- Connecting bracket
- Pole mount
- Waterproof connector kit
- Screwdriver
- Screws: M6×16 (solar panel / pole mount); M6×14 (camera to bracket)
Physical
- Pole diameter: 80–120 mm
- Solar-panel pan / tilt: −30° ~ +30° / −45° ~ +15°
- Camera-bracket pan / tilt: −175° ~ +175° / −45° ~ +10°
- Battery type: Li-ion (replace only with the specified type)
Network / Login
- Default IP: 192.168.226.201
- Default username: admin (set password on first activation)
- Browsers: IE (plug-in), Chrome, Firefox, Safari, Edge
- Mobile: iOS / Android app; scan device QR to add
Part number: IP-5IR4SP6-28-KIT
