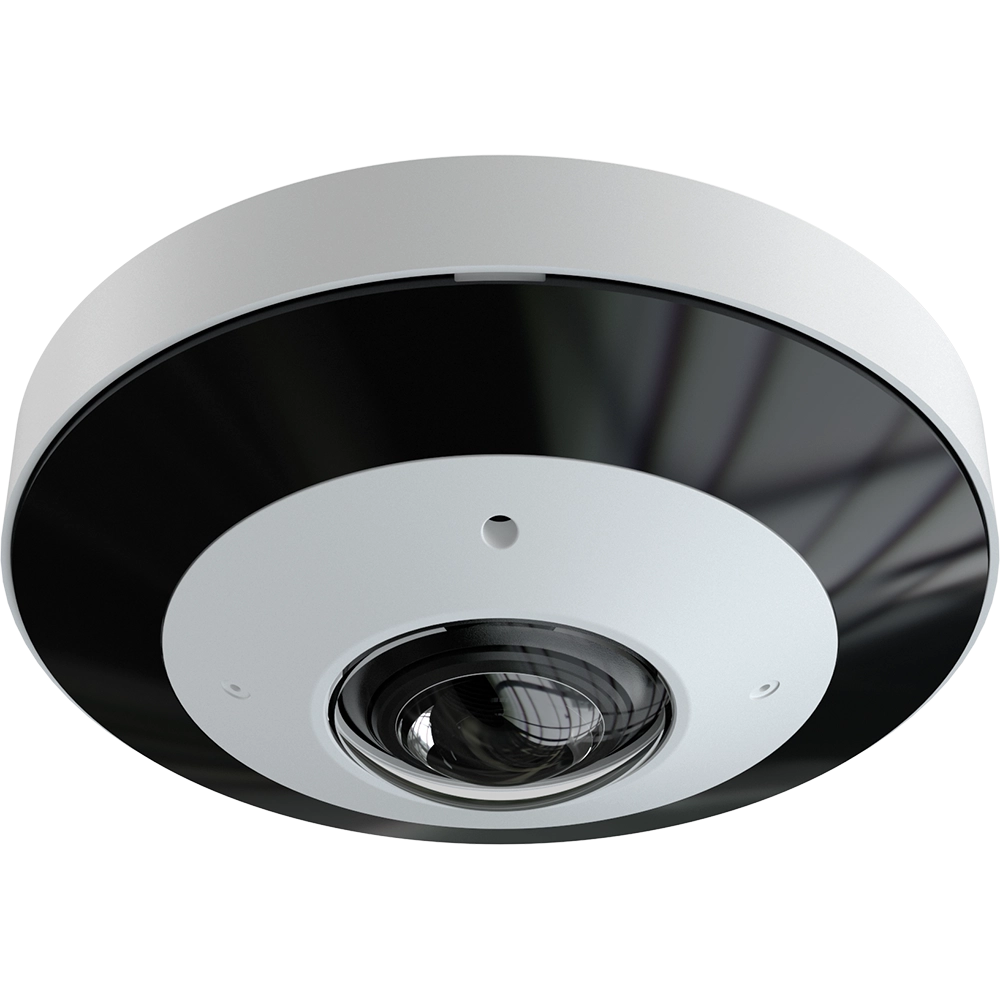

12MP Fisheye Camera
$1,100.00
Skip to product information
12MP Fisheye Camera
$1,100.00
12MP IR Fisheye Network Camera. Titanium IP camera. Power is PoE or 12V DC as listed in the spec sheet.
At a Glance
- 1:1 (3000 x 3000) @30fps
- H.265+ / H.265/ H.264+ / H.264 MJPEG coding
- ICR auto switch, true day & night
- 10~20m IR view distance
- Support 3D DNR, digital
- Support ROI
- Built-in micro SD card slot, up to 256GB
- IP 67 ingress protection
- Intelligent Analytics
- Support P2P function
- Support mobile surveillance by smart phones with iOS and Android OS
Camera Specs
- Image Sensor: 1/1.7" Progressive Scan CMOS
- Electronic Shutter: 1/3s ~ 1/100000s
- Min. Illumination: 0.01 lux@F2.0, AGC ON; 0 lux with IR
- Lens: 1.65mm @F2.0, horizontal field of view : 180 (wall mounting) 360 (ceiling mounting) 360 (desktop)
- BLC: Yes
- HLC: Yes
- Digital NR: 3D NR
- S/N Ratio: ≥ 50dB
- Main Stream: Fisheye view 50Hz: 25fps@(3000 x 3000,2160 x 2160, 1920 x 1920, 1440 x 1440, 960 x 960)
- Sub Stream: Fisheye view 60Hz: 30fps@1920 x 1920, 960 x 960, 480 x 480
- Bit Rate: 128Kbps ~ 16Mbps
- Audio Compression: G711A / U
- Video Output: CVBS (BNC x 1)
- Audio: 2CH Built-in MIC, 1 CH audio input, 1CH audio output
- IR Distance: 10-20m
Physical & Power
- Network: 1 CH RJ45 10 M/100 M self-adaptive Ethernet port
- Storage: Built-in micro SD card slot, up to 256GB
- Alarm: 1CH alarm input, 1CH alarm output
- Reset: Yes
- PoE: Yes, IEEE802.3af
- Ingress Protection:
- Power Supply: DC12V/PoE
- Power Consumption: <10.5W
- Working Environment: -30℃ to 60 ℃ (-22°F to 140 °F). Humidity 95% or less (non-condensing)
- Dimensions: (mm) 130.6 46.3
- Weight (net): Approx. 516.2g
- Installation: Wall mounting, ceiling mounting, desktop
Part number: IP-5FSA006N
