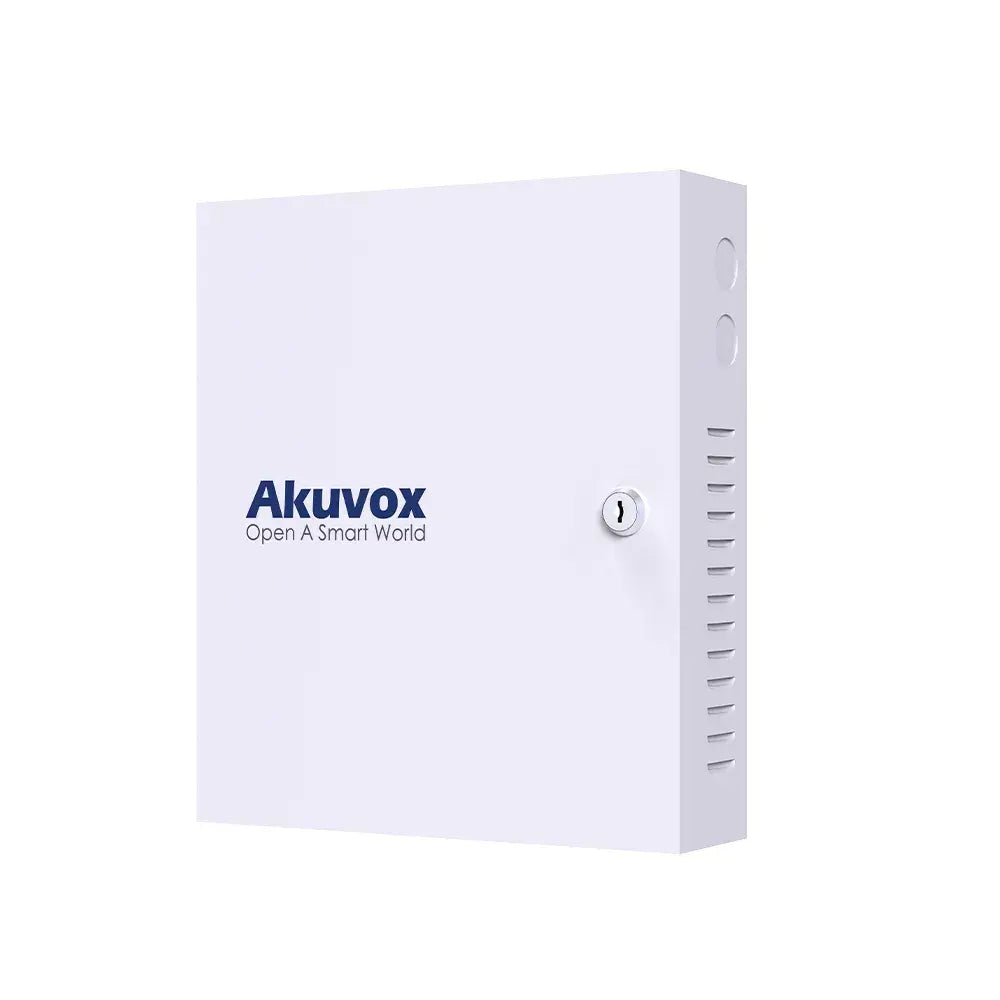

Akuvox EC33 Elevator Access Controller
$2,770.00
Reliable access controller for your building
The Akuvox EC33 is an IP elevator controller which uses HTTP commands to communicate with other Akuvox devices. Each controller has 32 outputs and can expand to 64 outputs.
At a Glance
- 10/100M Ethernet
- Large storage for 20,000 card holders and 100,000 logs
- EC33 supports 32 outputs and can connect to an expansion controller to expand to 64 outputs
- RS485 port to connect to an expansion controller
- Fire Alarm input to support emergency door release or normal lift commands
- Works with other Akuvox devices by using HTTP commands
- Akuvox Cloud supported
Physical & Power
- Communication: TCP/IP
- PoE: IEEE802.3af PoE
- RS485: Support
- Rated power: ≤10W
- Relays out: 32
- Wiegand: Wiegand 26/34
- RJ45 port: 1
- Fire alarm input: 1
- Power supply: 100～240VAC Input or PoE
- Working temperature: <45℃
- Working humidity: 10%~90%
- Dimension: 320 x 270 x 75 (mm)
Part number: EC33
