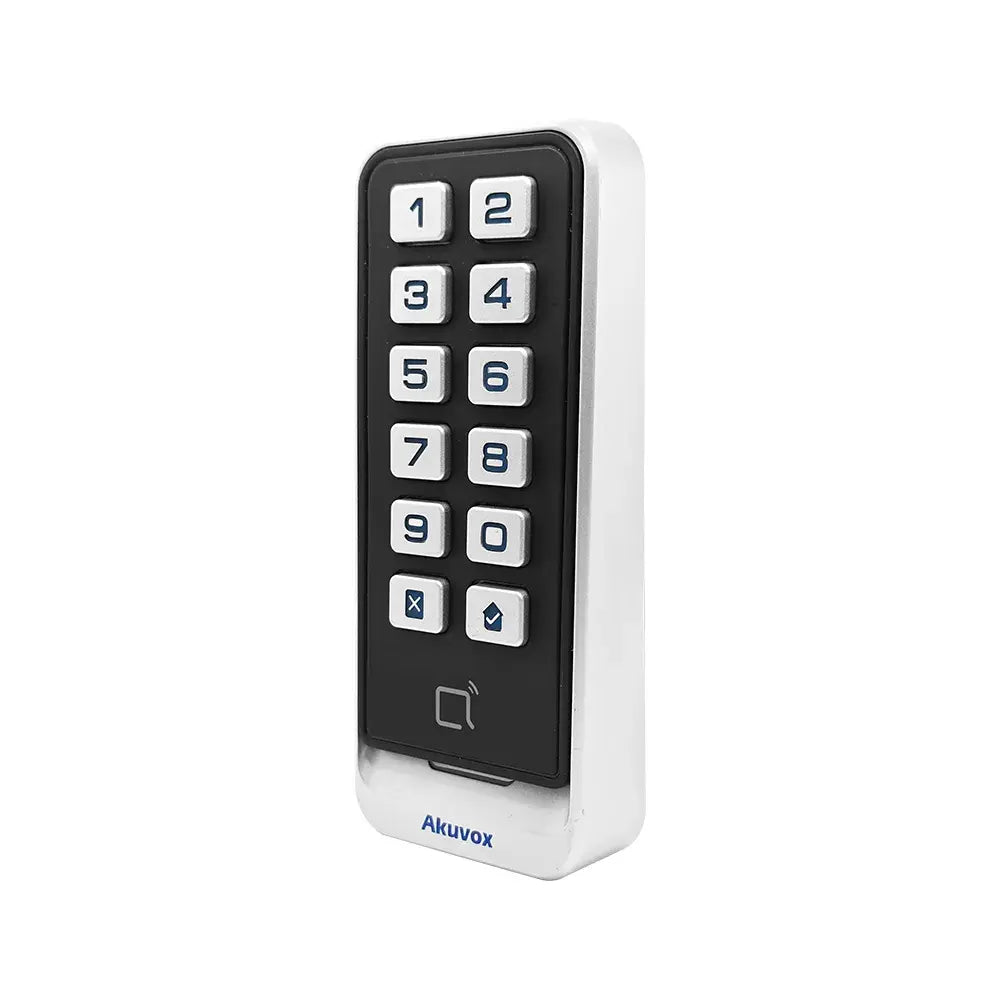

Akuvox ACR-CRM11 Slim RFID Keypad Reader, Aluminum

Access Card Reader

Akuvox’s ACR-CRM11 is a metallic RF access card reader with physical buttons. Adopting advanced IC card technology, it is safe, convenient and easy to use. Featuring high cost-effectiveness and built-in high performance microprocessor chip suitable for different access control projects.

Specification

• Dimension: 138 x 58 x 22 mm
• Front Panel: Aluminum
• Card Reader: 13.56MHz & 125kHz
• Power: 12V DC
• Wiegand: Support
• Buzzer: 1
• Indicator Light: 1
• Working Temperature: -20°C ~ +60°C
• Storage Temperature: -20°C ~ +80°C
• Relative Humidity: 15°C ~ +90°C
• Installation: Wall-mounted

Application Scenario

• Cost effective solution to be used with our access control panel
• Provide an extra entry/exit for existing projects

Part number: ACR-CRM11
