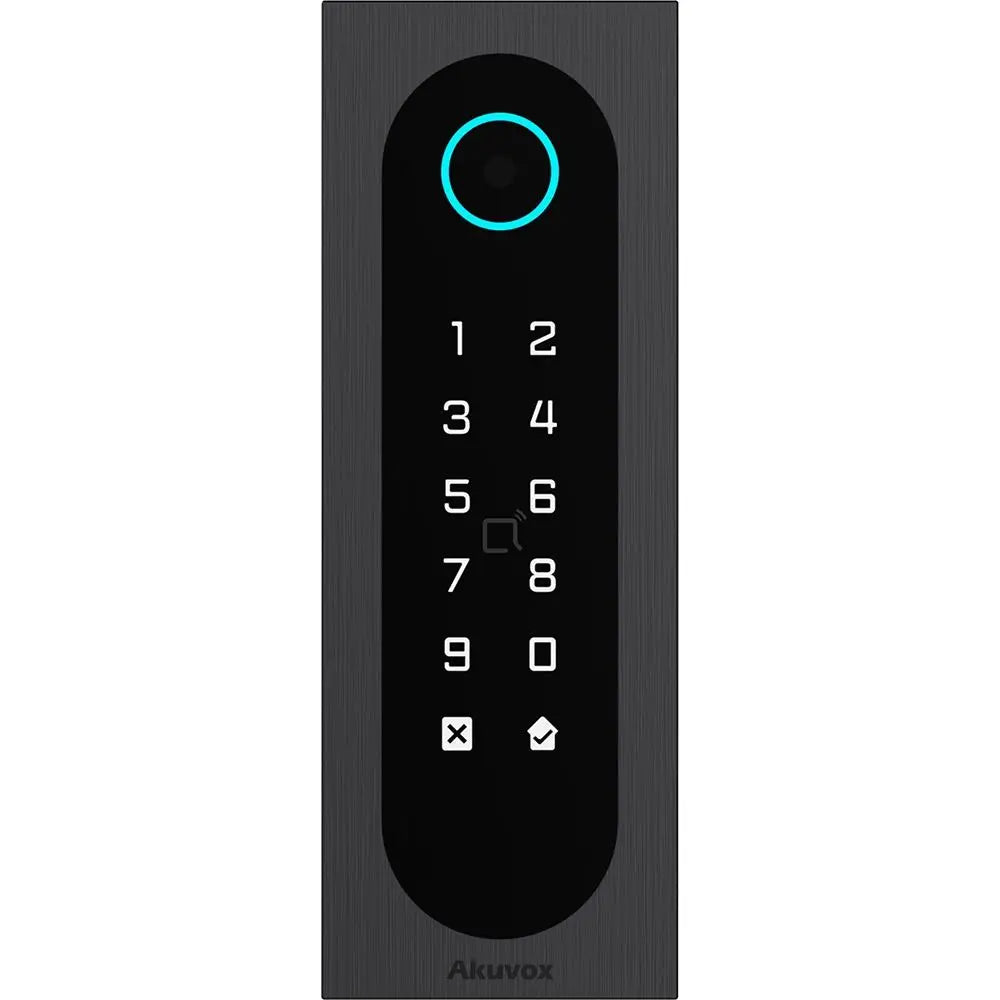

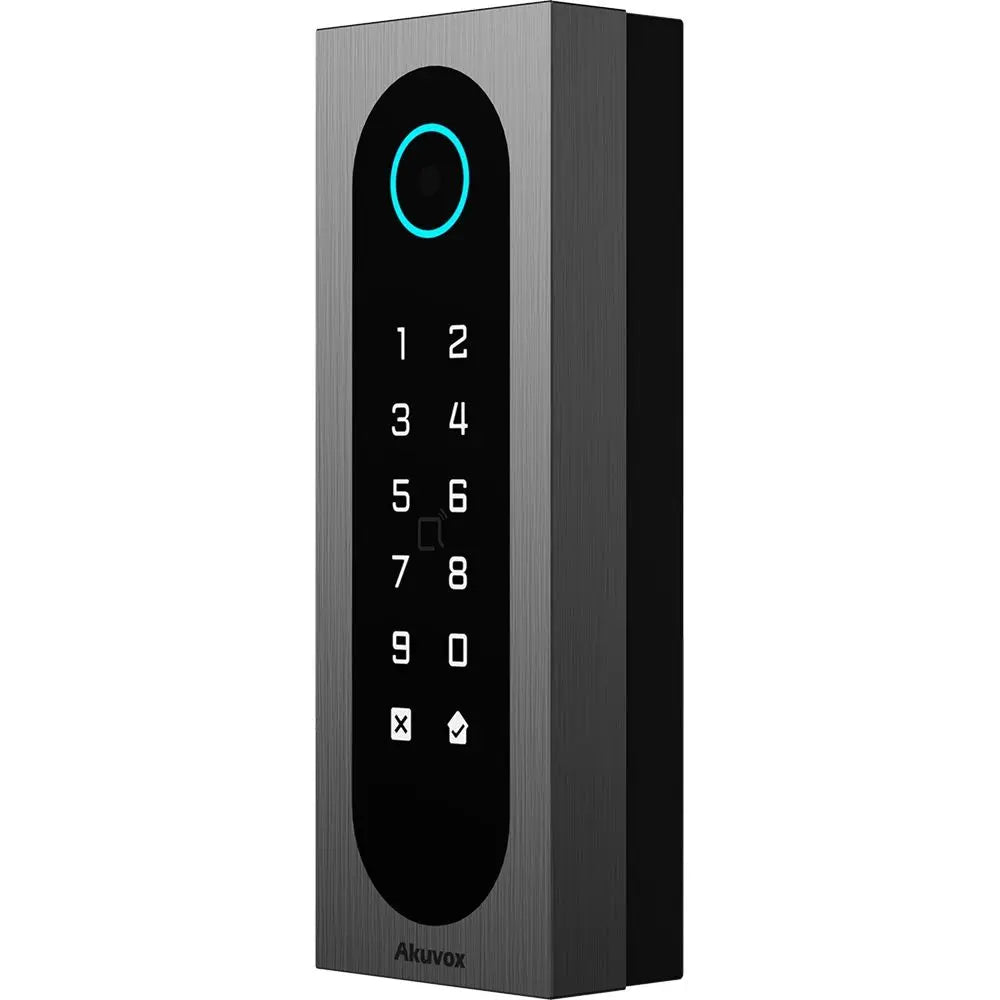

Akuvox A08S Slim Access Control Terminal with Keypad

Perfect Access Control for your premise

Akuvox’s A08S is a slim access control terminal that combines door controller and card reader in one device saving much cost for building operators. It offers flexible credentials, including PIN code, QR scanning, wave-to-unlock via Bluetooth, mobile access via NFC and RFID cards.

At a Glance

• Aluminum alloy frame with toughened glass
• IP65 & IK09
• 20,000 card capacity & 100,000 Event Log
• Multiple access methods: QR Code, Bluetooth, PIN, RFID
• Flush mounted & surface mounted
• Supports Wiegand & OSDP protocol

Physical & Power

• Front panel: Toughened Glass
• Frame: Aluminum Alloy
• RFID card reader: 13.56MHz & 125kHz
• Relay out: 1
• Inputs: 2
• Wiegand: Support
• RS485: Support
• Speaker: 8Ω / 0.5W
• Tamper proof alarm: Support
• Ethernet port: RJ45, 10/100Mbps adaptive
• 802.3af Power-over-Ethernet
• 12V DC connector (if not using PoE)
• Power output: 12V 600mA
• IP Level: IP65
• IK Rating: IK09
• Installation: Flush-mounted or Wall-mounted
• Dimension: 50 x 140 x 26.7 (mm)
• Working Humidity: 10~90%, no condensing
• Working Temperature: -20°C ~ +55°C
• Storage Temperature: -30°C ~ +70°C

Networking & Protocol

• Protocols support: IPv4, HTTP, HTTPS, FTP, DNS, NTP, TCP, UDP, ICMP, DHCP, ARP

Door Entry Feature

• Access schedule
• Access level management
• Support switch to reader mode
• Door access logs
• Flexible shift scheduling and attendance management

Deployment & Maintenance

• Auto-Provisioning
• Web management portal
• Web-based packet dump
• Configuration backup / restore
• Firmware upgrade
• Akuvox Cloud management
• Akuvox SDMC & ACMS

Application Scenario

• Provides access control for buildings such as condominiums, apartment buildings, office buildings, gated communities and industrial buildings

Part number: A08S

Downloads

Specification Sheet (PDF)
