Ajax Hub 2 Plus - Alarm Control Panel with Cellular SIM, Black

Hub 2 Plus

Hub 2 Plus is a central device in the Ajax system, which controls the operation of all connected devices and interacts with the user and the security company. It reports opening of doors, breaking of windows, threat of fire or flood, and automates routine actions using scenarios. If outsiders enter the secure room, Hub 2 Plus will send photos from MotionCam / MotionCam Outdoor motion detectors and notify a security company patrol. Hub 2 Plus must be installed indoors only. Color: Black.

At a Glance

• Alarm control panel running OS Malevich
• Internet: Ethernet, Wi-Fi, and two micro-SIM cards (2G/3G/4G)
• Up to 200 Ajax devices
• Up to 200 users
• Up to 100 third-party RTSP video cameras
• Jeweller range up to 2,000 m without obstacles
• Photo verification from MotionCam / MotionCam Outdoor

Connectivity

• Ethernet cable socket
• Wi-Fi
• Slot for micro SIM 1 and micro SIM 2
• Does not support calls and SMS using VoLTE
• Ajax Cloud required for apps, notifications, and OS Malevich updates (not evaluated by UL)

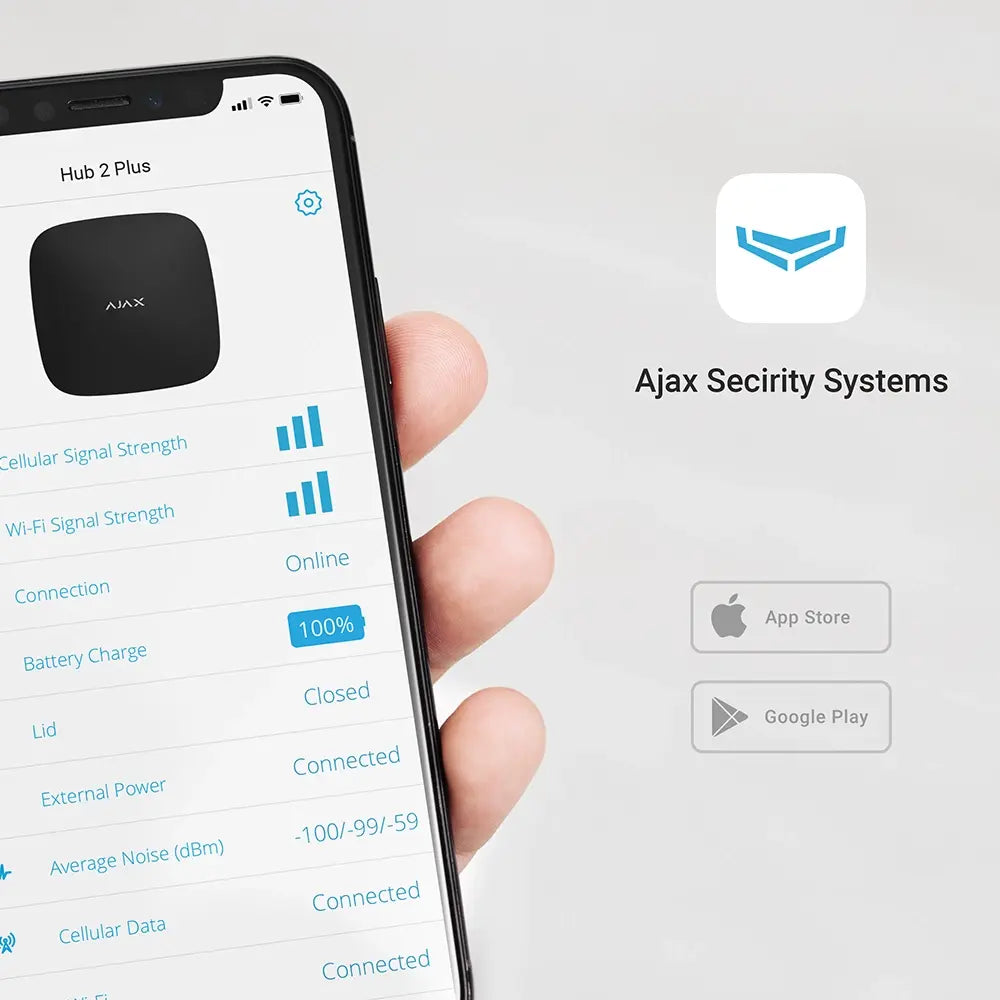

• Apps: iOS, Android, macOS, Windows — push, SMS, or calls

Jeweller radio

• Jeweller encrypted protocol
• Communication range: up to 2,000 m without obstacles
• Alarm raised in 0.15 seconds; activates sirens and notifies the CMS

Complete set

• Hub 2 Plus

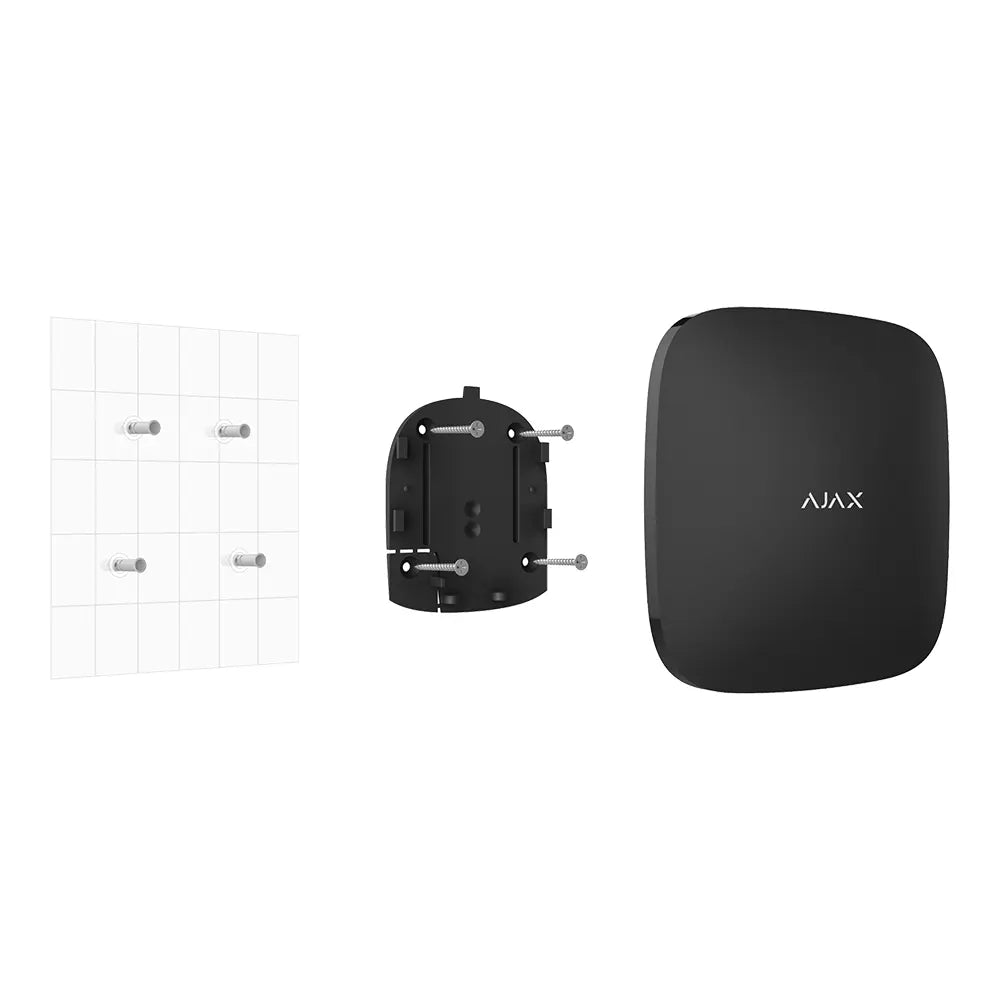

• SmartBracket mounting panel
• Ethernet cable
• Starter pack — not available in all countries

Part number: 72010.40.BL3

Downloads

Specification Sheet (PDF)
