KeyPad TouchScreen

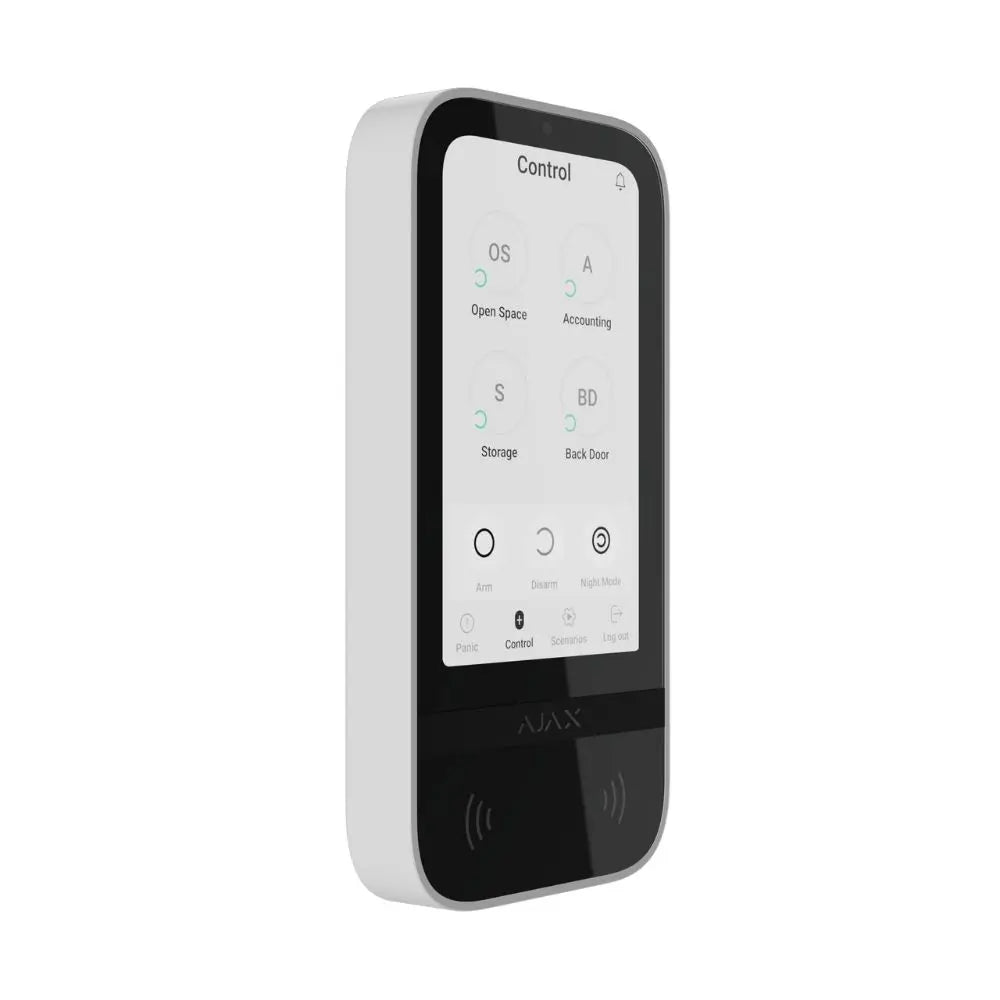

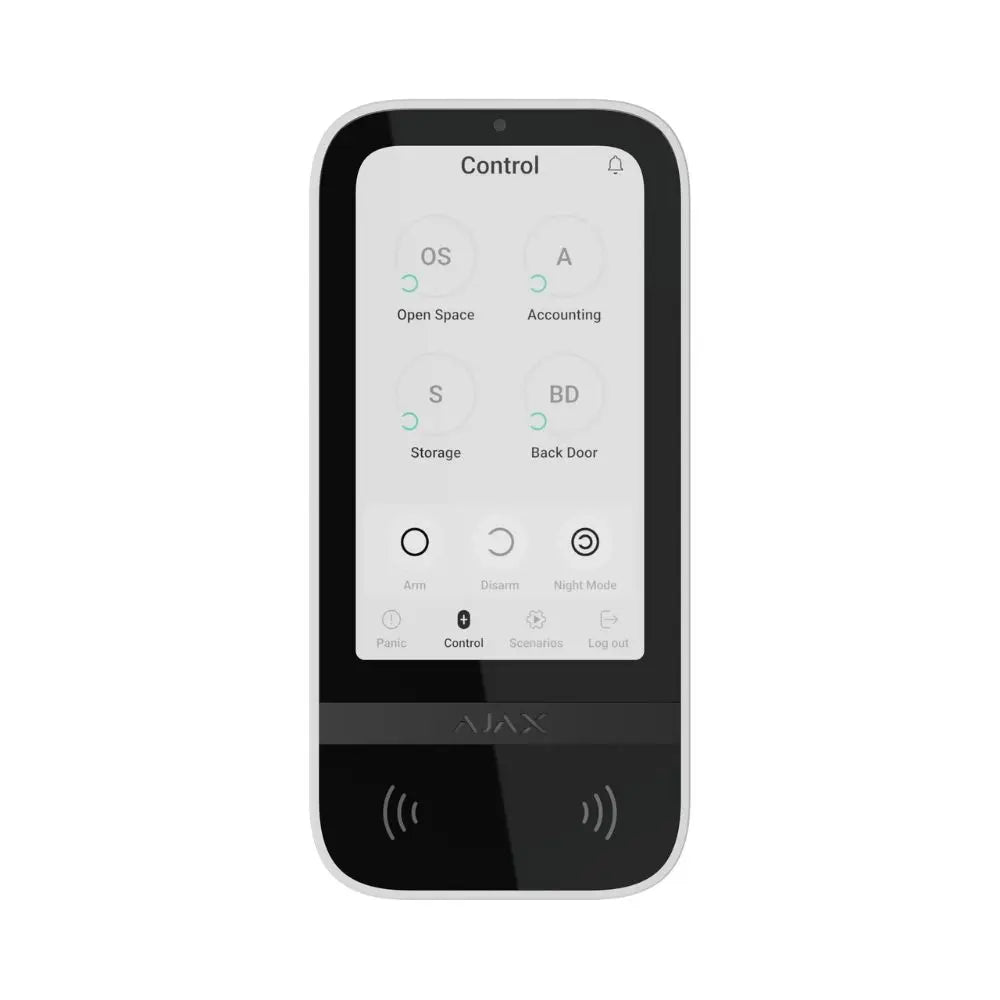

KeyPad TouchScreen is a wireless keypad with a touch screen designed for managing the Ajax security system. Users can authenticate using smartphones, Tag key fobs, Pass cards, and codes. The device is intended for indoor use. Color: White.

At a Glance

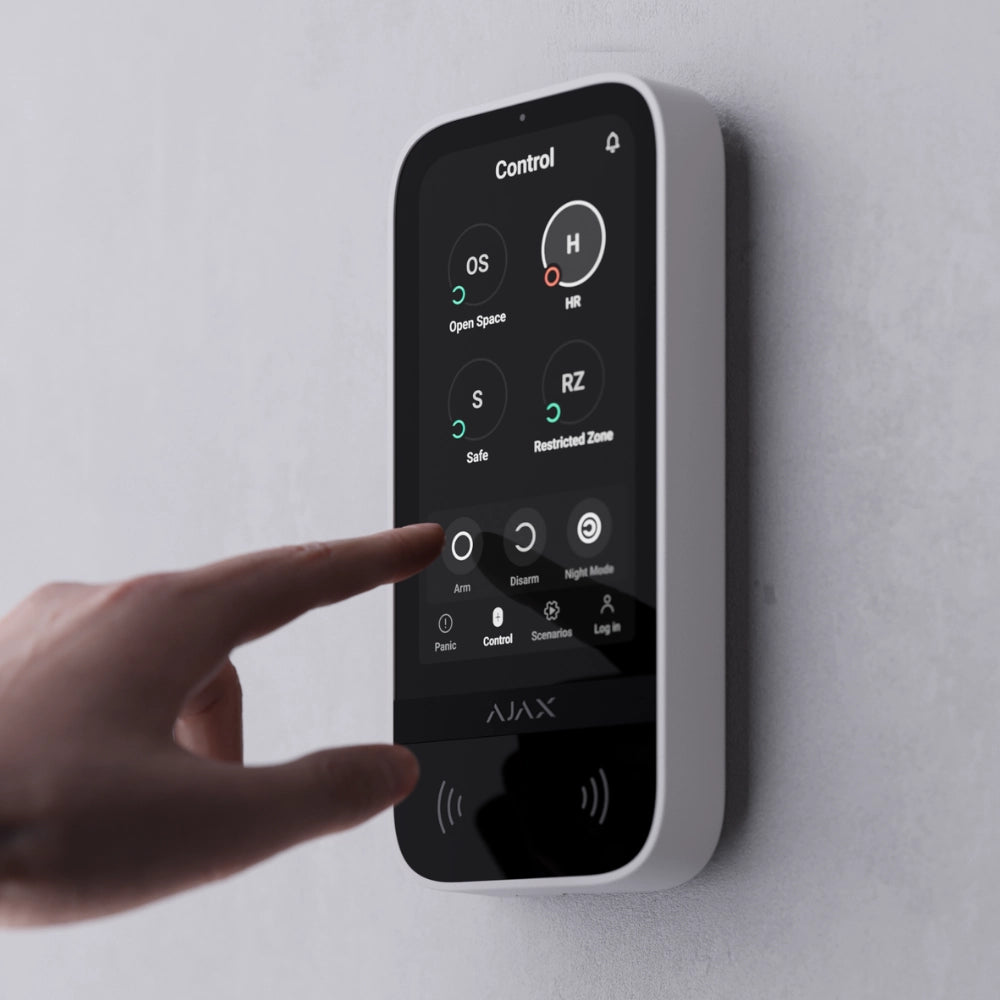

• 5-inch IPS touchscreen
• Reader for Tag / Pass / Bluetooth (smartphone)
• Jeweller for alarms and events; Wings for firmware, groups, rooms, and extra data
• Range without obstacles up to 1,700 m
• Requires a compatible hub with OS Malevich 2.16.1 or higher
• Incompatible with Hub Jeweller and Hub Plus Jeweller

Power

• Pre-installed batteries; optional third-party supply 10.5–14 V DC, at least 0.5 A (recommended 12 V DC)
• When external power is connected, batteries serve as backup
• External power is required to update firmware and is recommended if the display stays always-on

Radio & access

• Jeweller + Wings two-way wireless

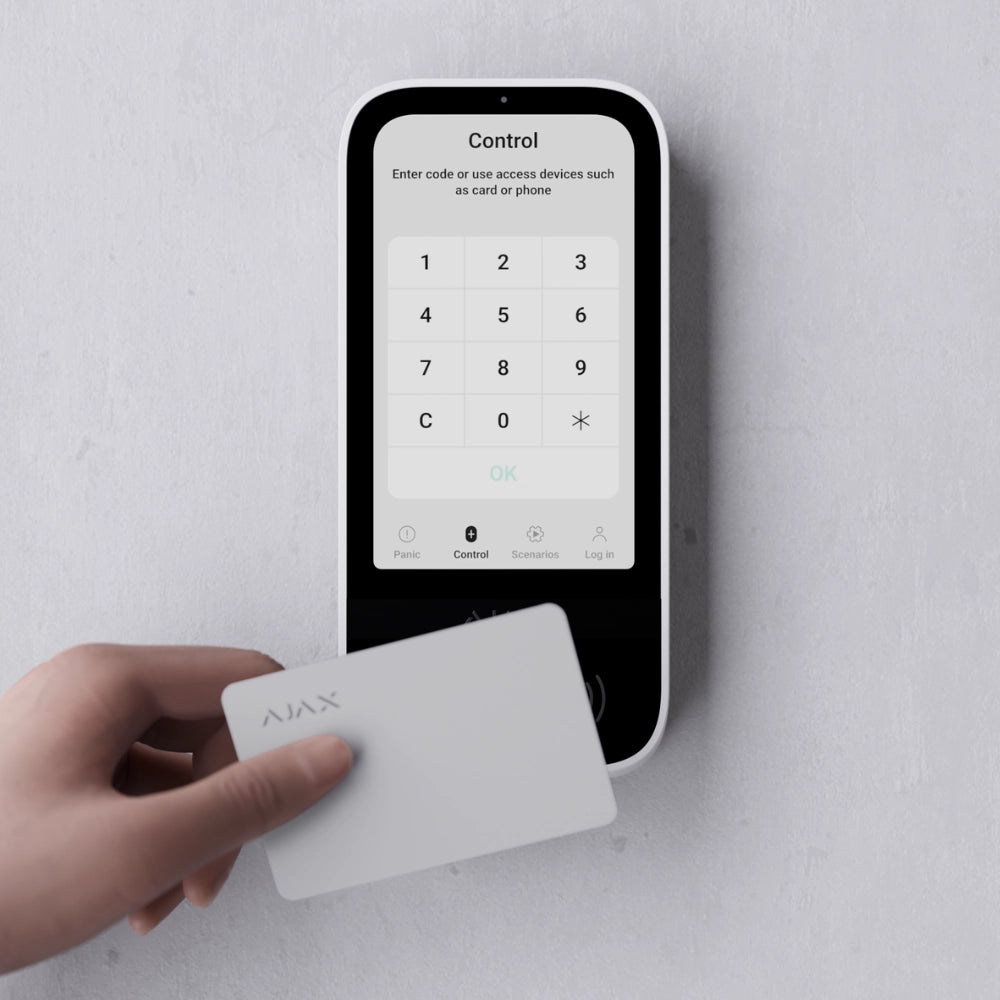

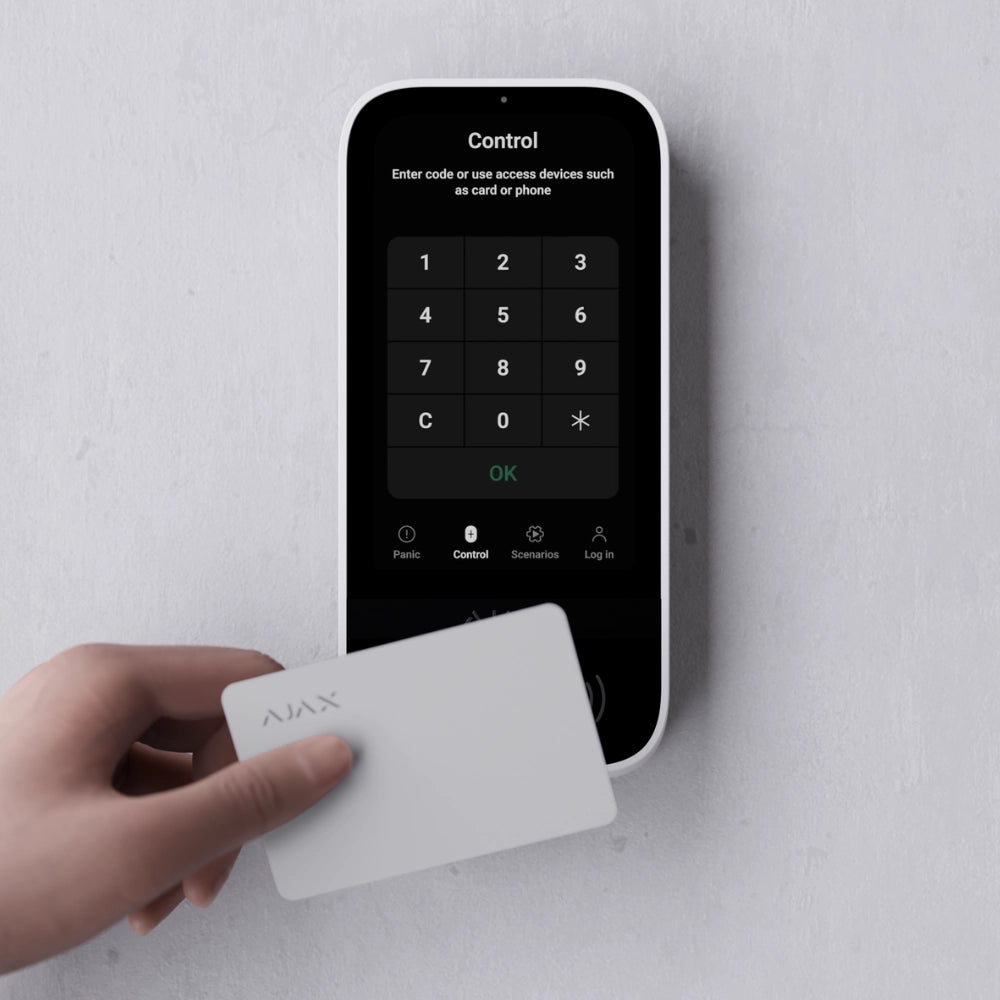

• Pass/Tag reading can be enabled in settings
• BLE smartphone authorization instead of Tag or Pass
• Can participate in two-stage arming but cannot be used as a second-stage device
• Recommended installation height: 1.3–1.5 m
• Compatible range extender: ReX 2 (with Hub 2 (2G) and other hubs listed in the manual)

Part number: 58473.148.WH3
