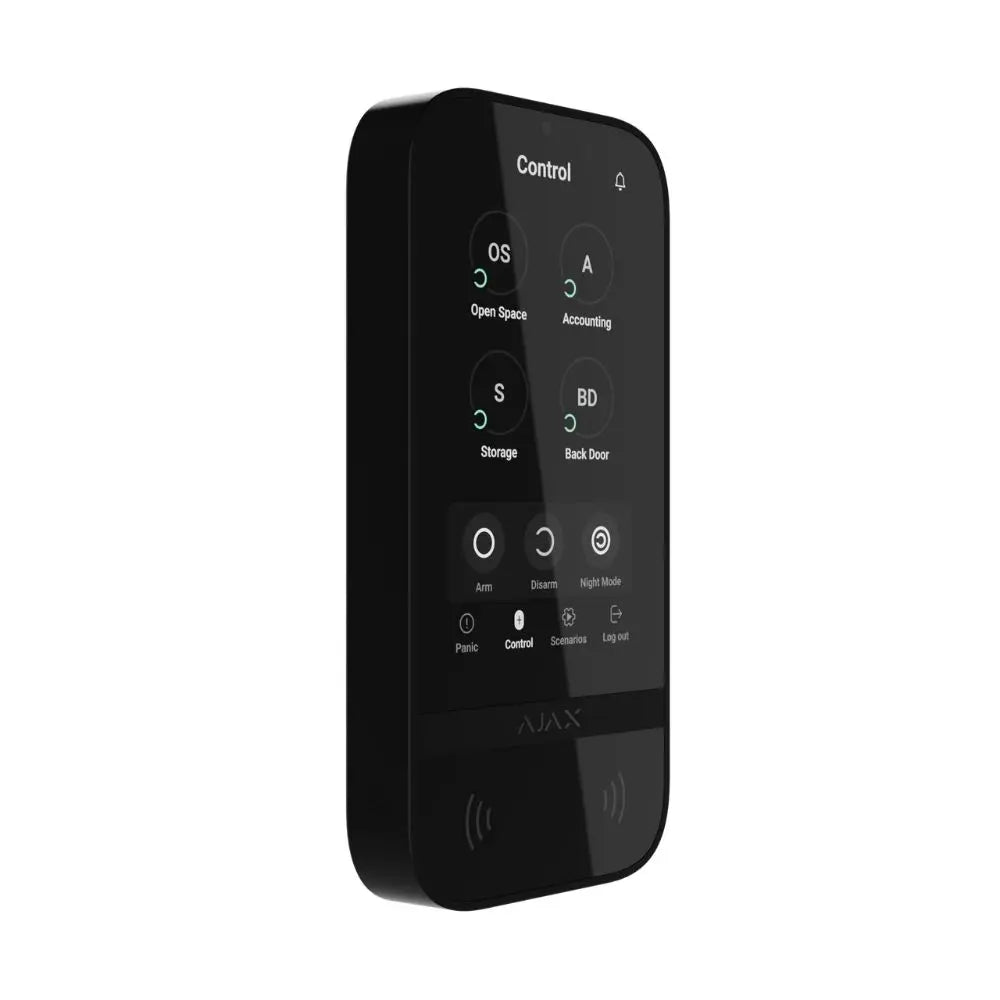

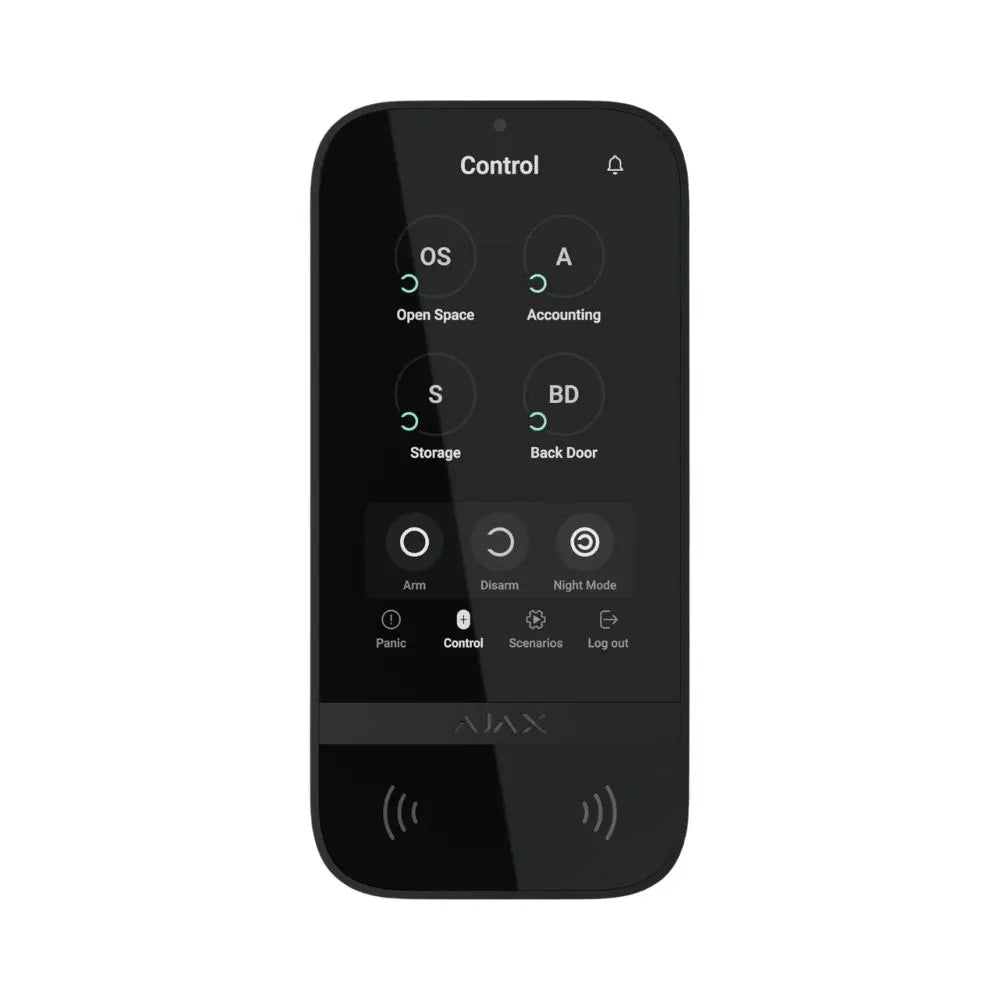

Ajax KeyPad TouchScreen - Wireless Touchscreen Keypad, Black
$719.82
Skip to product information
Ajax KeyPad TouchScreen - Wireless Touchscreen Keypad, Black
$719.82
KeyPad TouchScreen
KeyPad TouchScreen is a wireless keypad with a touch screen designed for managing the Ajax security system. Users can authenticate using smartphones, Tag key fobs, Pass cards, and codes. The device is intended for indoor use. Color: Black.
At a Glance
- 5-inch IPS touchscreen
- Reader for Tag / Pass / Bluetooth (smartphone)
- Jeweller for alarms and events; Wings for firmware, groups, rooms, and extra data
- Range without obstacles up to 1,700 m
- Requires a compatible hub with OS Malevich 2.16.1 or higher
- Incompatible with Hub Jeweller and Hub Plus Jeweller
Power
- Pre-installed batteries; optional third-party supply 10.5–14 V DC, at least 0.5 A (recommended 12 V DC)
- When external power is connected, batteries serve as backup
- External power is required to update firmware and is recommended if the display stays always-on
Radio & access
- Jeweller + Wings two-way wireless
- Pass/Tag reading can be enabled in settings
- BLE smartphone authorization instead of Tag or Pass
- Can participate in two-stage arming but cannot be used as a second-stage device
- Recommended installation height: 1.3–1.5 m
- Compatible range extender: ReX 2 (with Hub 2 (2G) and other hubs listed in the manual)
Part number: 58472.148.BL3
