Name: Ajax WallSwitch - Wireless Power Relay for Appliances, Black
Brand: Ajax
SKU: 42855.13.BL3
Price: 107.10 USD
Availability: InStock

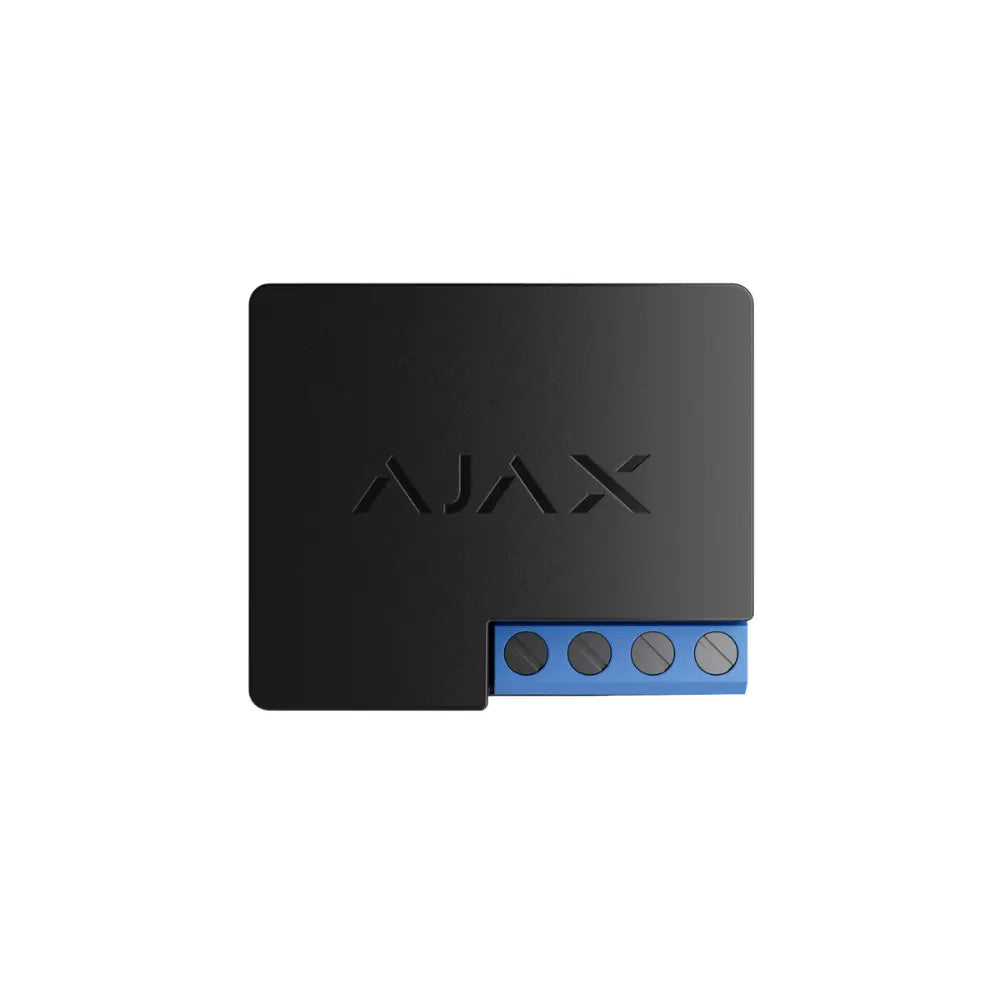

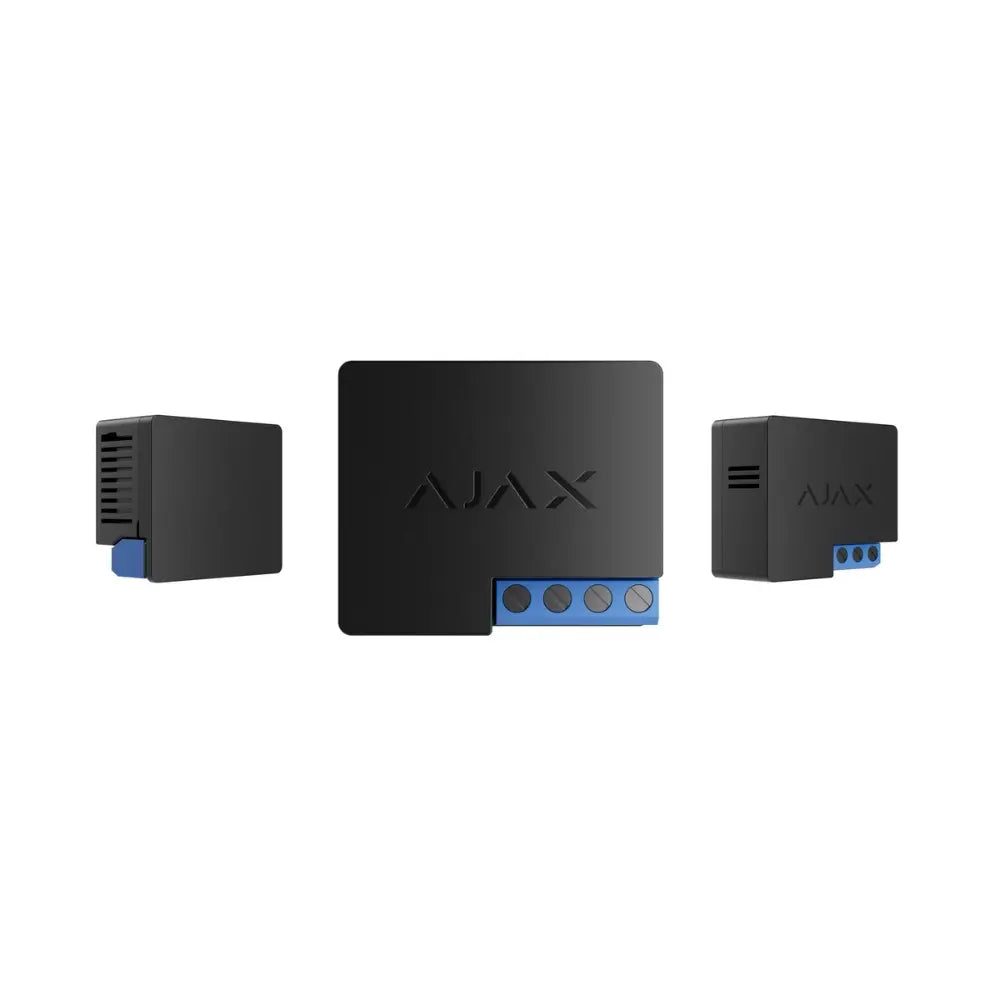

Ajax WallSwitch - Wireless Power Relay for Appliances, Black

$107.10

WallSwitch — 110/230 V~ power relay

WallSwitch is a power relay to control 110/230 V~ power supply remotely. The relay power supply is not galvanically isolated with terminal blocks; therefore, WallSwitch switches only the power received at the power supply terminal blocks. The device has an energy consumption meter and features three types of protection: voltage, current, and temperature. Only a qualified electrician or installer should install WallSwitch. It works only with Ajax radio signal range extenders and hubs. Color: Black.

At a Glance

Switches the phase of a 110/230 V~ circuit (neutral is not commuted)
Load up to 3 kW (resistive, 230 V~; up to 2.3 kW for EAEU countries)
Maximum load current 10 A; current protection 13 A
Energy meter: current, voltage, power, electrical energy
Pulse or bistable (firmware 5.54.1.0 and higher)
Jeweller range up to 1,000 m in an open space

Electrical

Power supply voltage: 230 V~, 50 Hz
Voltage protection: 230 V~ grids 184–253 V~; 110 V~ grids 92–132 V~
Maximum load current: 10 A
Maximum current protection: 13 A
Output power (resistive load 230 V~): up to 3 kW (other regions); up to 2.3 kW (EAEU)
Operating mode: pulse or bistable (firmware 5.54.1.0 and higher, production date from March 5, 2020); bistable only on older firmware
Pulse duration: 1 to 255 s (firmware 5.54.1.0 and higher)
Energy consumption in standby: less than 1 W
Number of switching: min 200,000
Cable: 0.75–1.5 mm² (22–14 AWG)

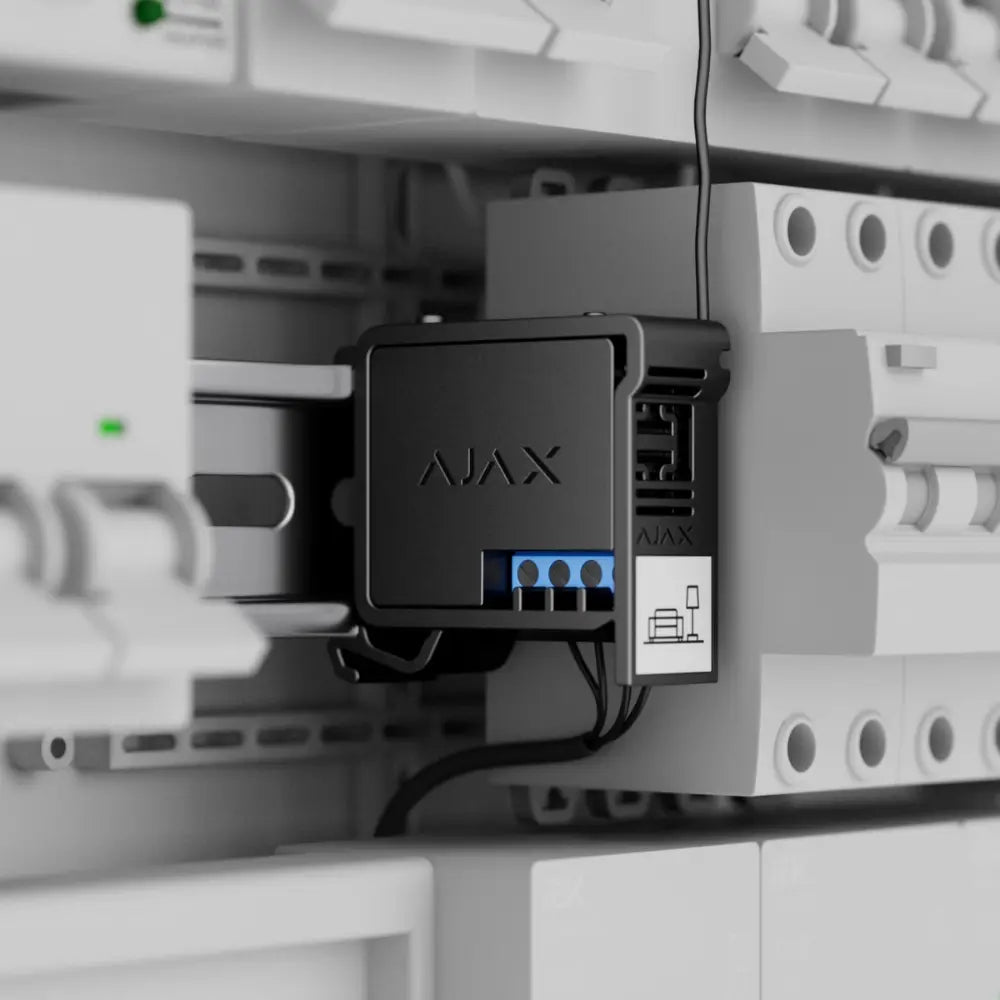

Flush-mounted built-in control device

Jeweller radio

Radio communication protocol: Jeweller
Radio frequency band: 866.0–866.5 / 868.0–868.6 / 868.7–869.2 / 905.0–926.5 / 915.85–926.5 / 921.0–922.0 MHz (depends on the sales region)
Radio signal modulation: GFSK
Radio signal range: up to 1,000 m in an open space
Compatibility: all Ajax hubs and radio signal range extenders
