Ajax 6V Power Supply for Hub 2

6V PSU for Hub 2 / Hub 2 Plus / ReX 2

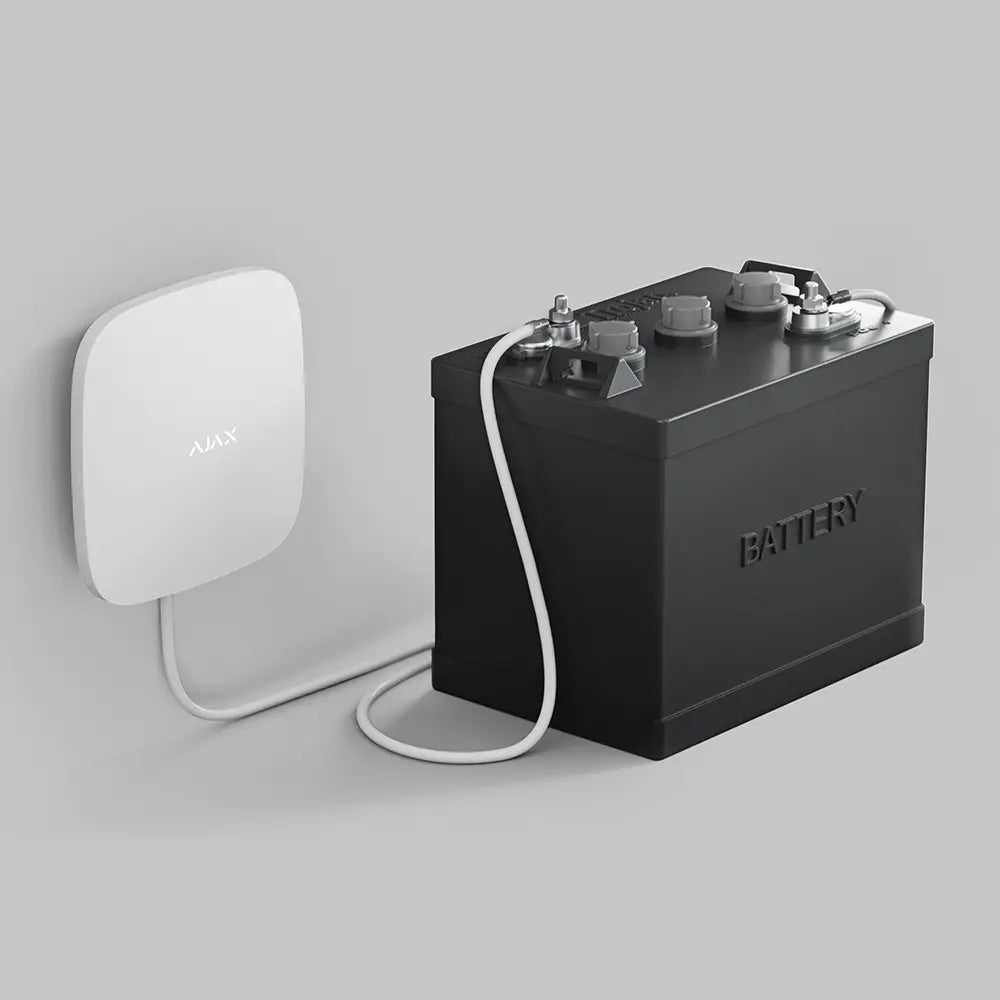

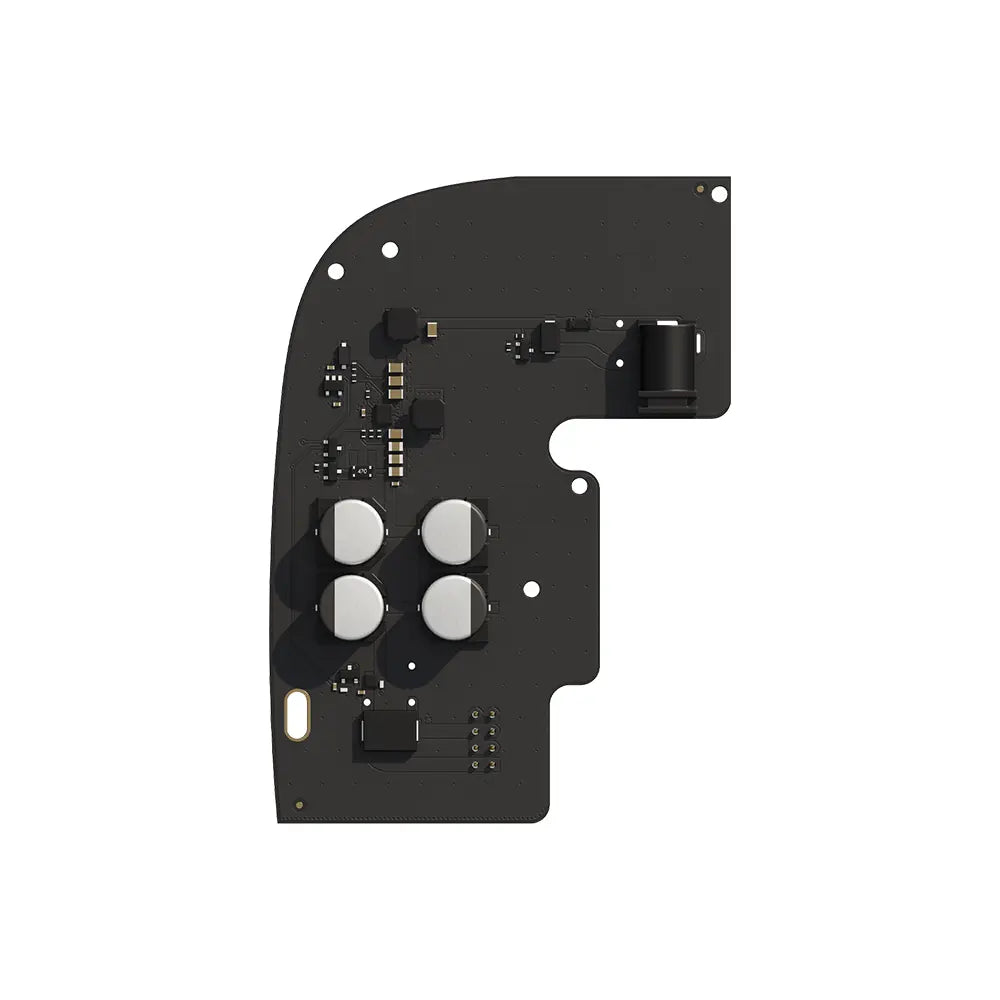

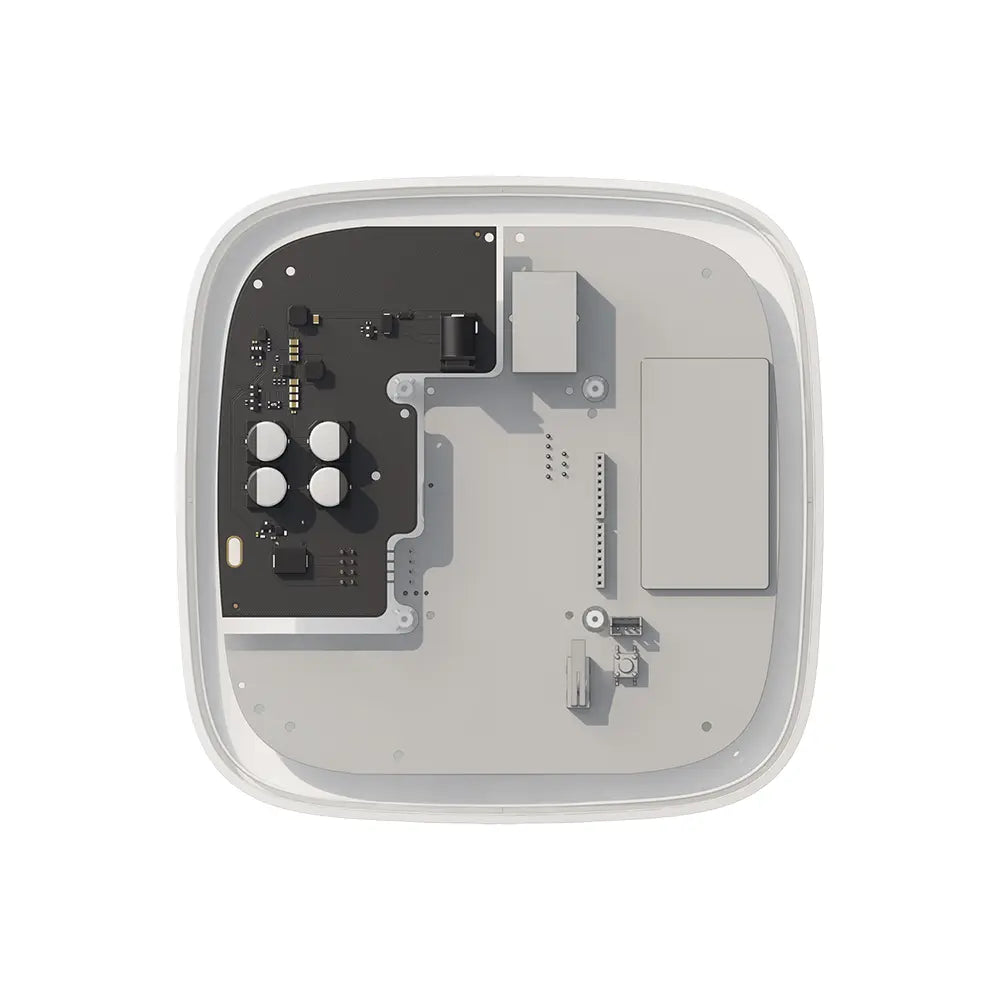

6V PSU for Hub 2/Hub 2 Plus/ReX 2 is a power supply unit, connecting Hub 2/Hub 2 Plus control panels or ReX 2 range extender to 6 V DC sources. This is an electronic board, replacing the standard 110/230 V~ power supply unit in the body of the device. Installation should be done by a qualified electrician only.

At a Glance

• Replacement 6 V DC power board for Hub 2, Hub 2 Plus, and ReX 2
• Replaces the built-in 110/230 V~ PSU
• Input 4.2–10 V DC; output 4.8 V DC ± 5%
• Max output current 1.5 A

Compatibility

• Control panels: Hub 2 (2G), Hub 2 (4G), Hub 2 Plus
• Range extenders: ReX 2

Physical & Power

• Input voltage: 4.2–10 V DC
• Output voltage: 4.8 V DC ± 5%
• Switch on voltage: 4.2 V DC ± 2.5%
• Switch off voltage: 3–3.4 V DC (depending on load)
• Max input current: 2.2 A at 4.2 V DC; 0.8 A at 10 V DC
• Max output current: 1.5 A
• Connection to mains: socket 6.5 × 2 mm; plug 5.5 × 2.1 mm
• Operating temperature: −10°C to +40°C
• Humidity: up to 75%
• Dimensions: 98 × 70 × 17 mm
• Weight: 26 g

Complete set

• 6V PSU for Hub 2/Hub 2 Plus/ReX 2
• Terminal adapter
• Quick start guide

Part number: 42790.78.NC
